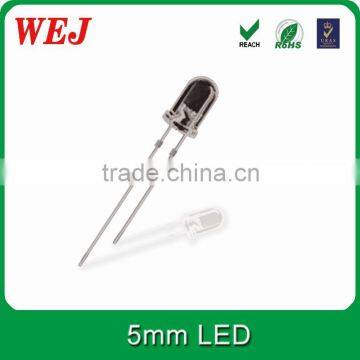

Top Quality High Radiant Power 3mm 5mm 940nm 850nm 830nm 810nm IR LED
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
615-630nm Green 5mm High Brightness Led Diode
-
High Quality Red and Yellowgreen Bi-color Common Anode Led 3mm
-
High Quality 5mm Round LED Red Color Led Diode 665nm Led Grow RoHS Compliant
-
High Quality Led 5mm Round Red Emitting Led Diode 650nm/660nm Led Grow RoHS Compliant
-
Shenzhen LED DIP LED Cool White 7000-1000K 0.1w 5mm White LED Price
-
Through Hole Package Type and DIP LED Diodes 3mm Red Blue Bicolor LED Common Cathode
Product Details
| Model Number | WEJ50AJC-E10 | Chip Material | AlGaInP | |
| Emitting Color | Other, Infrared | Luminous Intensity | 120mW/Sr | |
| Power | Other, 0.15W | Operating Temperature(℃) | -25, 85 | |
| Storage Temperature(℃) | -40, 100 | Place of Origin | Guangdong, China | |
| Brand Name | WEJ IR LED | Certification | CE |
Product Description
Specifications
810nm IR LED1. Chip: TK from Taiwan
2. Peak wavelength:810nm
3. Radiant intensity: at100mA, 120mW/Sr
4. Pb-free,RoHS REACH
Top Quality High Radiant Power 3mm 5mm 940nm 850nm 830nm 810nm IR LED
Electrical characteristics datasheet
Selection Guide
| Part No. | Emitted Color | Resin Color | Viewing Angle |
| WEJ50AJC-E10 | Infrared | Transparent | 30degree |
Absolute Maximum Ratings at Ta=25 ℃
| Parameter | Symbol | Value | Unit |
| Power dissipation | Pd | 150 | mW |
| DC Forward Current | If | 100 | mA |
| Peak Forward Current | Ifp | 1000 | mA |
| Reverse Voltage | Vr | 5 | V |
| Electro-Static-Discharge | ESD | 2000 | V |
| Operating Temperature | Topr | -25 to +85 | ℃ |
| Storage Temperature | Tstg | -40 to +100 | ℃ |
| Lead Solder Temperature | Tsol | 260 for 5sec | ℃ |
Notes:
1. 1/10 duty cycle, 0.1ms pulse width;
2. 2mm below package base.
Electrical/Optical Characteristics Ta=25 ℃
| Parameter | Symbol | Condition | Value | Unit | ||
| Min | Typ | Max | ||||
| Forward voltage | Vf | If=100mA | --- | 1.6 | 1.8 | V |
| Radiant Intensity | Ie | If=100mA | --- | 120 | --- | mW/Sr |
| Peak wavelength | λp | If=100mA | --- | 810 | --- | nm |
| Reverse current | Ir | Vr=5V | --- | --- | 50 | μA |
Notes:
1. Forward Voltage: ±0.1V
2. Wavelength: ±1.5nm
3. Radiant Intensity: ±10%

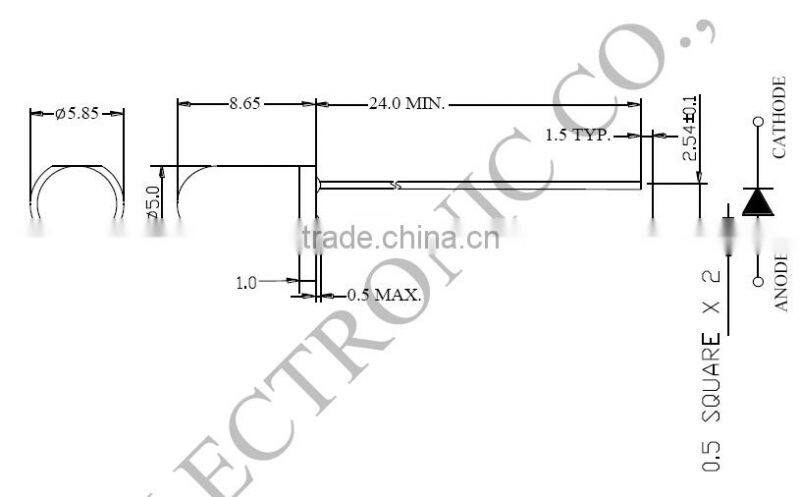

Package outline dimensions
Note:
1. All dimensions are in millimeters;
2. Tolerance is ±0.25 unless otherwise noted;
3. Lead spacing is measured where the leads emerge from the package;
4. Specifications are subject to change without notice.
| Product | Qty/bag | Qty/carton | GW/CTN | Carton siz |
| 5mm 810nm IR LED | 500pcs | 40000pcs | 24kg | 47*22*26.5cm |
Shipping:
*By Air: From Shenzhen or HK airport
*By sea: From Shenzhen or HK port
*By Express: By TNT, DHL,UPS,FedEx,EMS ect
1. Experienced R&D team
2. Professional production process
3. Free samples support
4. Short leadtime
5. Customized will b welcome
6. Small order will be acceptable
WEJ Oversales team:

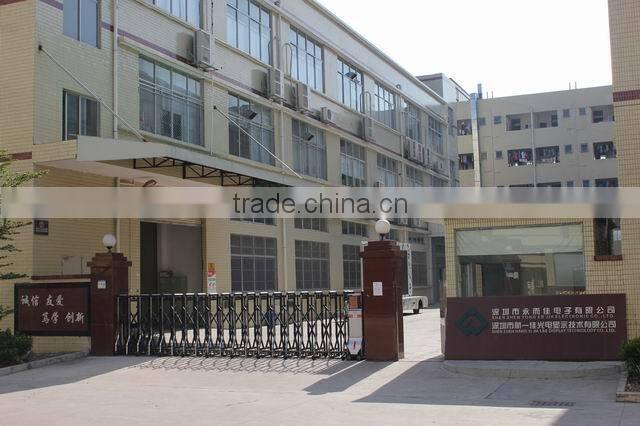

WEJ Industry park:

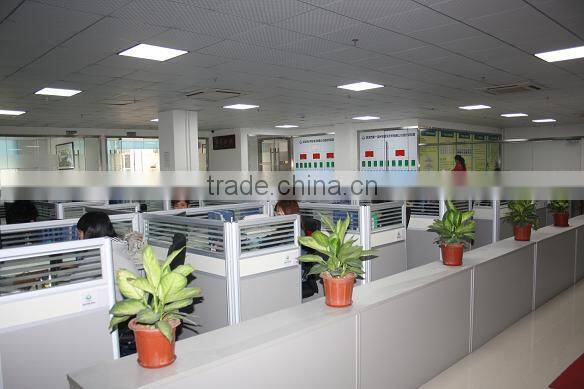

Office:

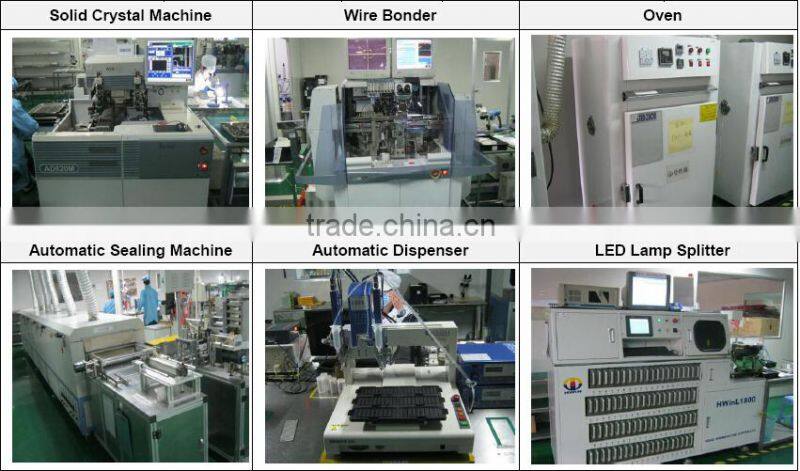

WEJ Porduction machines:
