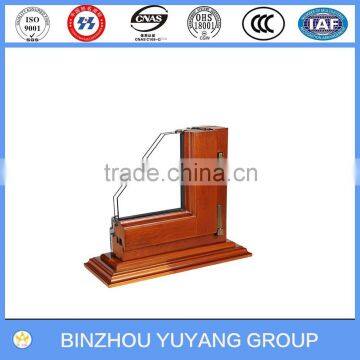

Manufacture thermal barrier profile for aluminum-clad wood windows and doors

Aluminium Alloy Chemical Composition

Alloy

6063 (%)

6063A (%)

6061 (%)

6082 (%)

Si

0.2~0.60

0.3~0.60

0.4~0.80

0.7~1.30

Fe

0.35

0.15~0.35

0.70

0.50

Cu

0.10

0.10

0.15~0.40

0.10

Mn

0.10

0.15

0.15

0.40~1.0

Mg

0.45~0.90

0.60~0.90

0.80~1.20

0.6~1.20

Cr

0.10

0.05

0.04~0.35

0.25

Zn

0.10

0.15

0.25

0.20

Ti

0.10

0.10

0.15

0.10

Other (each)

0.05

0.05

0.05

0.50

Other (total)

0.15

0.15

0.15

0.15

Al

Remainder

Remainder

Remainder

Remainder

Mechanical property:

Alloy

Temper

Tensile strength

Yield strength

Elongation

6061

T6

>= 265Mpa

>= 245Mpa

>= 8%

6063

T5

>= 160Mpa

>= 110Mpa

>= 8%

T5

>= 205Mpa

>= 180Mpa

>= 8%

Material

6000 series Aluminum

Temper

T4, T5, T6

Size / Thickness

Anodize protection film thickness from 17~22 um, powder coating from 40 ~ 120 um.

Application

 windows&doors, decorations ,industry, construction

Target client

detailer; windows and doors factory;construction unit;developers estate agent and so on

Surface treatment

Anodization, electrophoretic painting, powder coating, PVDF coating, wood grain painting

Colors

for anodization and eletrophoretic painting:Silver, bronze, champagne, nickel, golden yellow, etc.

for powder painting ,we can provide more than 200 colors.

Deep process

CNC, drilling, milling, cutting, welding, bending, assembling

Packing Details

shrink film, EP Film,and paper package;For normally, 12 tons for a 20 feet container; 24 tons for a 40 feet container.

Custom Made

Yes, we can package following with customer's request

Delivery time

(1)Die Developing and Sample testing: 12-18 days .

(2)Mass Production completed: 20-30days after sample is confirmed by Buyer.
