15000 lbs Heavy Duty Electric Winch
US$ 130 - 180
/ Set
50 Sets(Min. Order)
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | weknown | |
| Model Number | SEC15000 | Power Source | Electric | |
| Application | Auto | Capacity | 15000Ibs |
Product Description
Model:SEC15000(12/24V)

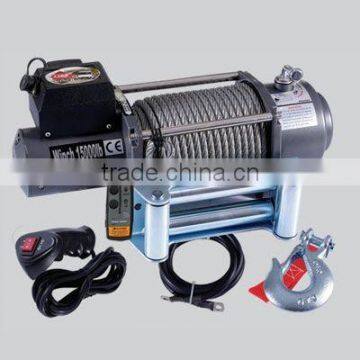

Name:15000 lbs Heavy Duty Electric Winch
| Rated Line Pull | 15000LBS (6804kgs) single line |
| Motor | 5.6hp/4.2kw 12V, 6.17hp/4.6kw 24V Series Wound |
| Control | Remote switch, 12ft(3.7m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 312.4:1 |
| Clutch | Flexible operation,water-resistent |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ85mm×L221.5mm(3.35"×8.72") |
| Cable | Φ11.0mm,28m (0.433"×91.86") |
| Fairlead | 4-Way Roller Fairlead |
| Remote Control | Included |
| Battery | Recommended:650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(183mm) |
| Finish | Dark gray powder coat |
| Overall Dimensions | 21.5"×7.09"×9.73"(547mm×180mm×247mm) |
| Mounting Bolt Pattern | 254mm×114.3mm (10"×4.5") |
| Weight | N.W.53kg G.W.55kg |
| Packing Size | 60×23×38.5cm 1PC/CTN |
15000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
| Line Pull | lbs | 0 | 2000 | 4000 | 6000 | 8000 | 10000 | 12000 | 15000 |
kg | 0 | 907 | 1814 | 2721 | 3628 | 4536 | 5443 | 6804 | |
| Line Speed | ft/min | 23.94 | 12.27 | 9.38 | 7.41 | 6.16 | 5.18 | 4.46 | 3.31 |
m/min | 7.30 | 3.74 | 2.86 | 2.26 | 1.91 | 1.58 | 1.36 | 1.01 | |
| Motor | Amps | 75 | 106 | 167 | 195 | 246 | 283 | 340 | 433 |
15000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 24V
| Line Pull | lbs | 0 | 2000 | 4000 | 6000 | 8000 | 10000 | 12000 | 15000 |
kg | 0 | 907 | 1814 | 2721 | 3628 | 4536 | 5443 | 6804 | |
| Line Speed | ft/min | 25.6 | 12.7 | 9.7 | 7.79 | 6.4 | 5.4 | 4.6 | 3.44 |
m/min | 7.80 | 3.88 | 2.90 | 2.37 | 1.95 | 1.65 | 1.41 | 1.05 | |
| Motor | Amps | 60 | 97 | 138 | 162 | 193 | 228 | 256 | 332 |
15000LBS LINE PULL AND CABLE CAPACITY
| Layers of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | lbs | 15000 | 13779 | 11202 | 9358 |
| kg | 6804 | 6250 | 5081 | 4245 | |
| Cumulative cable capacity | ft | 19.75 | 41.79 | 66.09 | 91.86 |
| m | 6.02 | 12.74 | 20.15 | 28 | |
