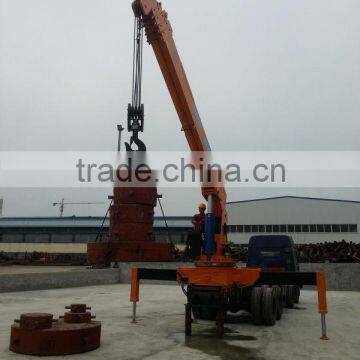

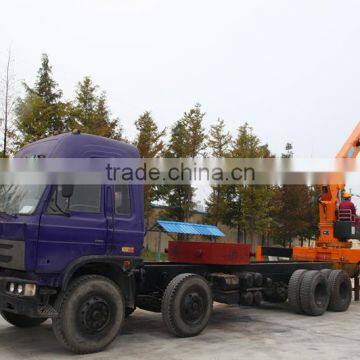

20 Ton Truck Mounted Crane SQ20S5 500 Kn.m at 2.5 m Crane Truck High Quality on Sale

FOB Price

US$ 45,700 - 45,800 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Construction Industry
Rated Lifting Moment	500Kn.m	Max. Lifting Load	20 ton at 2.5 m
Max. Lifting Height	20.1 m	Span	2400-7270mm
Place of Origin	Hubei, China	Brand Name	HBQZ
Model Number	SQ20S5	Certification	ISO9001:2008 TS16949
Warranty	1year	After-sales Service Provided	Engineers available to service machinery overseas

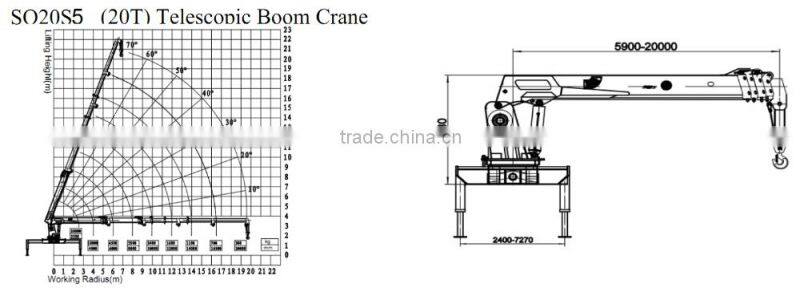

THE PEFORMANCE ON CRANE MODEL No. SQ20S5

Model #	SQ20S5 /telescopic crane 20 ton at 2 .5m
Max Lifting Moment	500 Kn.m
Max Lifting Capacity (kg/m)	20000/2.5
	3000/8.1
	1500/12
	500/16.5
Max Lifting Height	20.1 m
Working Radius	20 m
Boom Section	5 stages
Rotation Angle	360º continuous
Working Pressure	28 Mpa
Rated Oil Flow	80L/min
Oil Tank Capacity	200L
Wire Rope(Winch)	Φ14*160m
Swing Speed	2rpm
Winch Type	Hydraulic
Swing Type	Planetary gear reduction.
Outrigger	4 ,Extension, Hydraulic operating.
Outrigger Span	2400-7270mm
Crane Weight	8100 kg
Installation Space	1600mm
Safety Device	Load Indicator, Hydraulic Safety Valve, Counter Balance Valve. Automatic Swing Brake, Hook Safety Device.
Material	HG70
