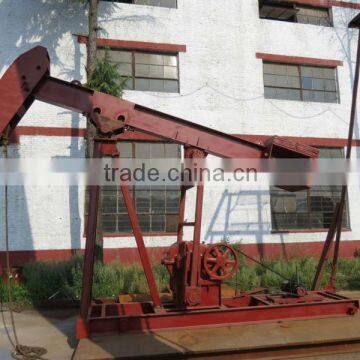

B serise walking beam pumping unit for oil Production

FOB Price

USD $4,200 - $5,000 / Unit

1 Unit(Min.Order)

Supply Ability 30 Unit / Units per Month
Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Production Capacity	30 m³ per day
Place of Origin	Henan, China	Brand Name	ZS
Model Number	B25D-67-36	Voltage	220v/380v
Power(W)	5.5kv	Dimension(LWH)	190x45x121
Weight	6900 lbs	Features	B25D-67-36
Certification	API 11E	Warranty	2 years
After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

1, confirm to API 11E standard
2, Simple structure, Reliable, durable,
3, Size:B25D-67-36

Brief Introduction of the B-serise walking beam pumping unit

In order to adapt to the development of petroleum industry, our company developed an pumping unit of beam-balanced serial in combination with the factual situation of our country's oil field, aiming at the development direction of pumping units of deep pumping, long stroke and energy-saving, which are needed by such oil fields as not being able to perform flowing based on their oil layer energy.

Technical Performances

1)Walking Beam Balance

2)25 Retarder Rating Torque 25000lbs.in

3)Retarder Adopting Double-circular-arc Helical Gearing System

4)6700lbs Rating Polished Rod Load

5) Stroke 36in

Item	Pumping unit type	Lifting Capacity(lbs)	Stroke Length(in)	Rated torque(in.lbs)
1	C-912D-470-240	47,000	240 211 181	912,000
2	C-912D-427-216	42,700	216 185 155	912,000
3	C-912D-427-192	42,700	192 165 138	912,000
4	C-912D-305-192	30,500	192 165 138	912,000
5	C-912D-365-168	36,500	168 144 121	912,000
6	C-912D-305-168	30,500	168 144 121	912,000
7	C-912D-427-144	42,700	144 123 102	912,000
8	C-640D-305-192	30,500	192 165 138	640,000
9	C-640D-305-168	30,500	168 144 121	640,000
10	C-640D-365-144	36,500	144 123 102	640,000
11	C-640D-305-144	30,500	144 123 102	640,000
12	C-640D-256-144	25,600	144 123 102	640,000
13	C-640D-305-120	30,500	120 102 84	640,000
14	C-456D-305-168	30,500	168 144 121	57,000
15	C-456D-305-144	30,500	144 123 102	40,000
16	C-456D-256-144	25,600	144 123 102	57,000
17	C-456D-365-120	36,500	120 102 84	40,000
18	C-456D-305-120	30,500	120 102 84	25,000
19	C-456D-256-120	25,600	120 102 84	25,000
20	C-320D-256-144	25,600	144 123 102	320,000
21	C-320D-256-120	25,600	120 102 84	320,000
22	C-320D-213-120	21,300	120 102 84	320,000
23	C-320D-305-100	30,500	100 85 70	320,000
24	C-320D-256-100	25,600	100 85 70	320,000
25	C-320D-213-86	21,300	86 71 56	320,000
26	C-228D-213-120	21,300	120 102 84	228,000
27	C-228D-173-100	17,300	100 86 72	228,000
28	C-228D-246-86	24,600	86 71 56	228,000
29	C-228D-213-86	21,300	86 71 56	228,000
30	C-228D-200-74	20,000	74 64 54	228,000
31	C-228D-173-74	17,300	74 64 54	228,000
32	C-160D-173-86	17,300	86 74 62	160,000
33	C-160D-200-74	20,000	74 64 54	160,000
34	C-160D-173-74	17,300	74 64 54	160,000
35	C-160D-143-74	14,300	74 64 54	160,000
36	C-160D-173-64	17,300	64 54 44	160,000
37	C-114D-119-86	11,900	86 72 59	114,000
38	C-114D-143-74	14,300	74 62 51	114,000
39	C-114D-173-64	17,300	64 54 44	114,000
40	C-114D-143-64	14,300	64 52 40	114,000
41	C-114D-133-54	13,300	54 45 36	114,000
42	C-80D-119-64	11,900	64 53 42	80,000
43	C-80D-133-54	13,300	54 45 36	80,000
44	C-80D-119-54	11,900	54 45 36	80,000
45	C-80D-133-48	13,300	48 40 32	80,000
46	C-80D-109-48	10,900	48 37 25	80,000
47	C-57D-76-54	7,600	54 41 28	57,000
48	C-57D-109-48	10,900	48 37 25	57,000
49	C-57D-95-48	9,500	48 37 25	57,000
50	C-57D-89-42	8,900	42 33 23	57,000
51	C-57D-76-42	7,600	42 33 23	57,000
52	C-40D-76-48	7,600	48 37 27	40,000
53	C-40D-89-42	8,900	42 33 23	40,000
54	C-40D-76-42	7,600	42 33 23	40,000
55	C-40D-89-36	8,900	36 28 20	40,000
56	C-25D-67-36	6,700	36 28 20	25,000
57	C-25D-56-36	5,600	36 28 20	25,000
58	C-25D-53-30	5,300	30 20	25,000

4, Loading on the container

5, Spare parts photos
