Finger-Type Four Way-Standard Series
Negotiable
/ Piece
500 Pieces(Min. Order)
- Bangalore
- T/T
You May Like
Product Details
| Brand Name | ELECTRO FIBRES | Model Number | Finger-Type Four Way-Standard Series | |
| Type | Other, Finger-Type | Material | Other, SMC | |
| Application | Low Voltage | Rated Voltage | customized | |
| Tensile Strength | customized |
Product Description
Product Description
Pertaining to the clients’ requirements, we have been committed to manufacture, supply, trade and export superior quality Finger-Type Four Way-Standard Series Busbar Support. In order to satisfy the needs of clients, this support is manufactured using premium quality raw materials obtained from dependable sources. This support is extensively used for electrical and engineering applications.
Features:
- High tensile strength
- Resistance against corrosion
- Precise dimension
| Product | Finger-Type Four Way-Standard Series |
| Place of Origin | Karnataka, India |
| Brand Name | ELECTRO FIBRES |

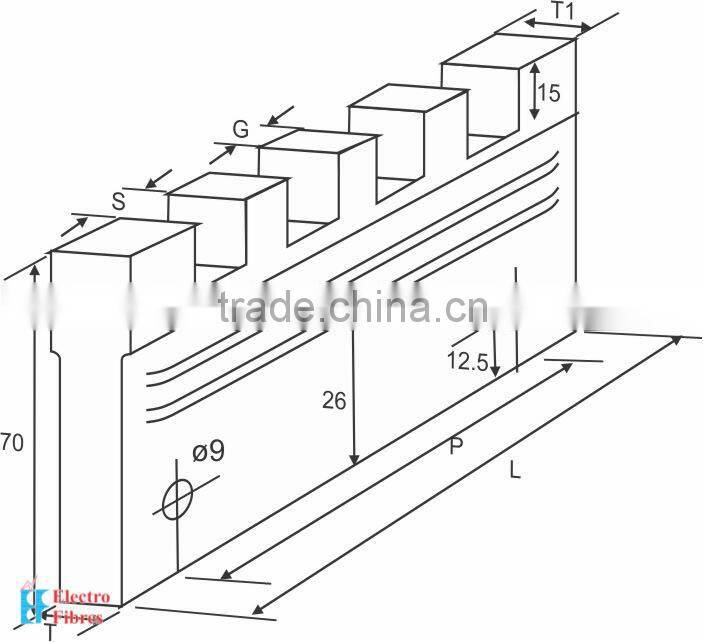

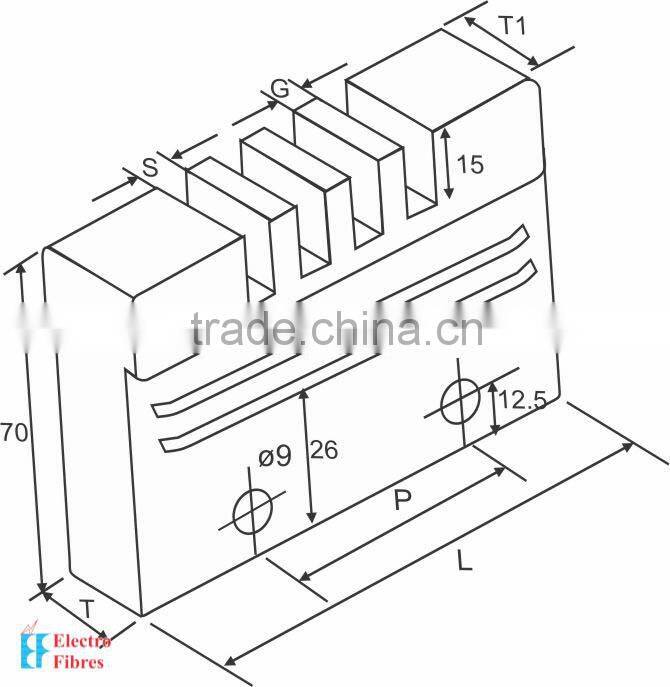

| Cat. No. | Size | L | S | G | P | T | T1 |
| EFK-4x7/90 | 70x90 | 90 | 7.2 | 6 | 50 | 16 | 20 |
| EFK-4x6/100 | 70x100 | 100 | 6 | 5.5 | 50 | 16 | 20 |
| EFK-4x9/100 | 70x100 | 100 | 9 | 7 | 50 | 16 | 20 |
| EFK-4x7/100 | 70x100 | 100 | 7.2 | 6 | 50 | 16 | 20 |
| EFK-4x11/130 | 70x130 | 130 | 11.2 | 9.5 | 80 | 16 | 20 |
| EFK-4x14/130 | 70x130 | 130 | 13.7 | 12.5 | 80 | 16 | 20 |
Packaging & Shipping
Packaging details:Standard export package or as per your requirements.
Our Services
To attain leadership in our field of business by providing quality products incorporating industry standards, fusing diverse methods of effective process control and quality evaluation to match the critical requirements of the millennium, through continual improvement and reviewing the effectiveness of QMS, quality policy and the quality objective.
Company Information
Elecrtro Fibres is an ISO-9001 2008 certified company and our products are CE marked . We have well equipped Test Lab and the products are tested for various quality parameters to ensure consistent quality of the products. Our products are tested at CPRI , Bangalore for various mechanical and electrical properties as per IS Standard.
We have a well trained work force of more than 80 people and supporting staff of 25 members.
