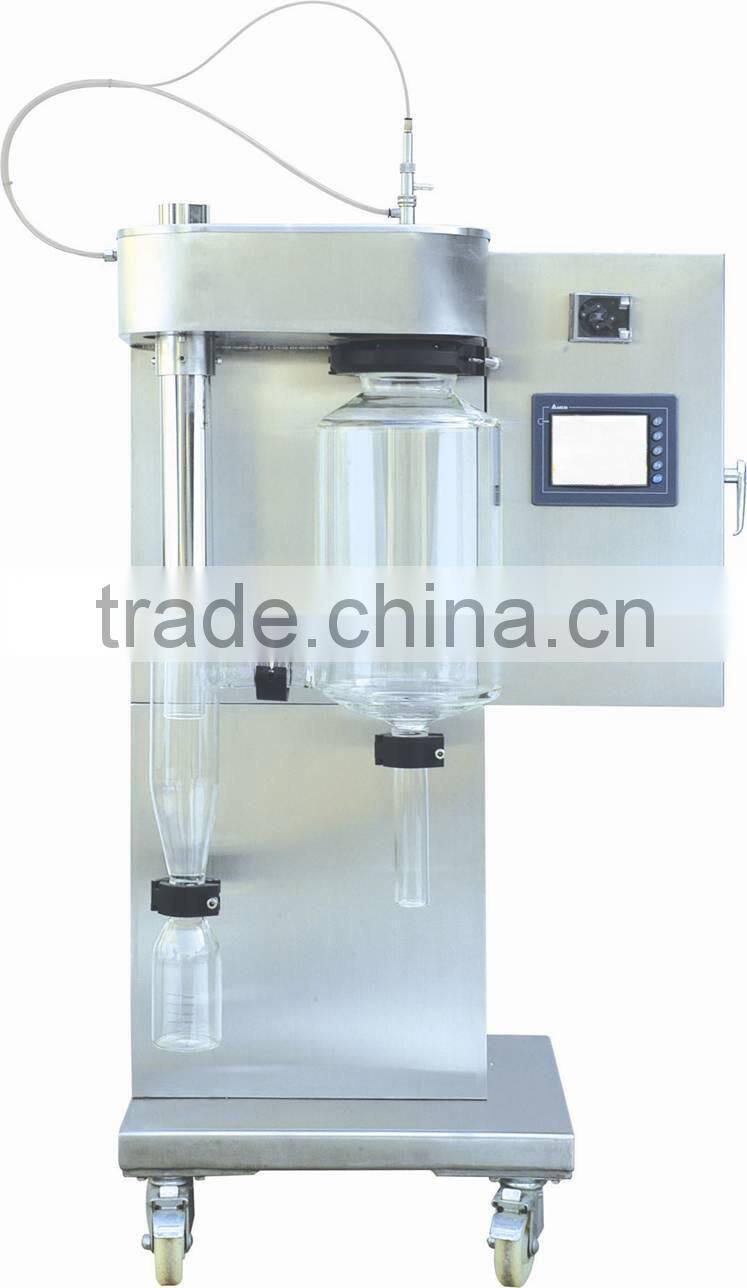

Laboratory Pilot Mini Spray Dryer

Laboratory Scale Spray Dryer

SPM-015, made by SPM Inc. cooperating with USA company on Spray drying research for many years, is self contained and supplied complete and ready for immediate operation.

All major components are housed within a stainless steel cabinet and the unit can be used on a bench top or with an optional staional stainless steel stand. The system was designed to be Stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode ,and allowed two modes of run: Autoamtic-mode, and Eyemonitored mode for the purpose of easliy controlling experimental process.

SPM-015 micro-laboratory Spray apply to major colleges and universities, research institutes and pharmaceutical chemical industry, food production and laboratory micro-powder particles, such as the solution to all emulsion, with broad-spectrum applicability of the suspension for heat-sensitive Of dry material, such as biological products, bio-pesticides, such as enzymes, as a result of the materials emitted only in the size of the particles sprayed into a mist by the high temperature only, it is only moments to heat, to keep them active in the dry material still maintain its Active ingredient from damage.

Advantages:

Large color touch-screen operation, automatic control and manual control of the combination, the only of China:

Automatic Control: one-click start, settings spray process parameters, the temperature is scheduled to reach the temperature, peristaltic pump to start, touch-screen display running animation show a clear process to run; shutdown just stop button, the machine automatically safe Shutdown.

Manual control: For the experiment in the process of adjustment of process parameters can be easily switched to manual, the whole experiment color touch-screen dynamic display (animation).

Shutdown protection: shutdown just stop button, the machine in addition to fans outside the immediate cessation of operation of the equipment will not guarantee misoperation (forced Kwan fan) and lead to burn some of the heat.

Spray drying and collection system using transparent high-quality glass Pyrex heat-resistant materials, making spray-drying process in the most stable and pollution-free environment, and the whole process of spray-drying experiment can be directly observed, Researchers and process control of the experimental results provide a great convenience, time and found to solve the problem. All the glass components easy to be demolished, are easy to clean.

Built-in air compressor imports no oil, dusting the track stars were normal, good liquidity and very low noise, less than 60db, in line with the national laboratory standards for noise;

Second spray atomized fluid structure of the whole high-quality stainless steel materials used to create sophisticated, compact design, the need for ancillary equipment, user-friendly, never as good as new.

In order to meet the user adjust the parameters of the experimental scope of the request, in dry temperature control on the design of real-time control PID temperature control technology to enable full and accurate temperature control temperature, heating temperature accuracy of ± 1 .

In order to maintain the purity of the samples, equipped with a filter into the air.

Feed through into the feed peristaltic pump regulator, the smallest amount of samples up to 50ml. Optional magnetic stirrer

After the drying of the dry powder products, the particle size more uniform, more than 95% of the dry powder particles in the same range.

For viscous materials, with cleaner nozzle (-pin), was blocked in the nozzle, will be automatically removed, the frequency of needle-automatic adjustment;

Techniacl Information:

Max Evaporation capacity : 1500 ml moisture /hour

Air inlet temperature range 40 to 300 °C

Air outlet temperature range 40 to 140 °C

Dry Cycle time: 1.0-1.5S

Temp.Precision: ± 1  °C

Max. Sample feed: 32ml/ min

Min. Sample feed: 50ml/H

Option of nozzle size: (0.5/0.7/0.75/1.0/1.5/2.0/2.5).

Heater power: 3kw

Power supply: 220V 50/60 HZ SINGLE PHASE or According to your requirement
