High Speed Mixer / Granulator
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SPM | |
| Model Number | SHK | Application | Powder | |
| Type | Granulator | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
GMP StandardPLC Control
Easy for Operation
Emergency Stopping Function
Highly Cost Effective
We can supply a complete set according to the users' requirements.
Specifications
GMP Standard
PLC Control
Easy for Operation
Emergency Stopping Function
Highly Cost Effective
Principle:
The powdery material and adhesive in cylinder are mixed fully at the bottom to become humid soft material. Then it is cut by high-speed crusher and turns into uniform granules.
Features:
1. The machine adapts horizontal cylinder structure. Its structure is reasonable;
2. Using air filled seal shaft to drive. When washed, it can be changed to water;
3. Using fluidization to Granulate and the granule is near ball. Its fluidity is good;
4. Compared with the traditional process,25% of adhesive can be saved and the drying time can be shorted;
5. The time of each mixing is 2 minutes and the time of granulating is 1~4 minutes. Compared with the traditional process,4~5 times of efficiency is raised by;
6. In the same sealed container, dry mixing, humidity mixing and granulating can be finished, It is in conformity with the requirements of GMP;
7. The whole operation has strict safe and protective measures;
8. The mixing and cutting speeds are controlled by changing frequency change, so the granules are more even.

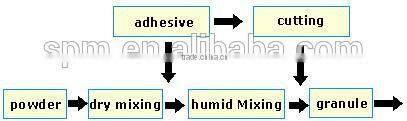

Flow Chart:
Technical Parameters:
Item | Specification | |||||||||
Name | Unit | 10 | 50 | 150 | 200 | 250 | 300 | 400 | ||
Capacity | L | 10 | 50 | 150 | 200 | 250 | 300 | 400 | ||
Output | kg/batch | 2-5 | 15 | 50 | 80 | 100 | 130 | 200 | ||
Admix speed | r.p.m | 100-1000 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | ||
Admix power | kw | 2.2 | 5.5 | 15 | 15 | 15 | 18.5 | 2.2 | ||
Incise speed | r.p.m | 1500/3000 | ||||||||
Incise power | kw | 0.75 | 2.2 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | ||
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
Projects
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
We can supply a complete set according to the uses' requirments.
