M10-AD3030,30V 30A Portable AC DC Power Supply
Negotiable
/ Piece
10 Pieces(Min. Order)
- xiamen shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM | |
| Model Number | M10-AD3030 AC DC Power Supply | Output Power | Other, >500W | |
| Output Type | Dual | Input Voltage | Other, 220~240VAC ±10% or 110~127VAC ±10% | |
| Output Voltage | 30V | Output Frequency | 50/60Hz | |
| Output Current | 30A |
Product Description

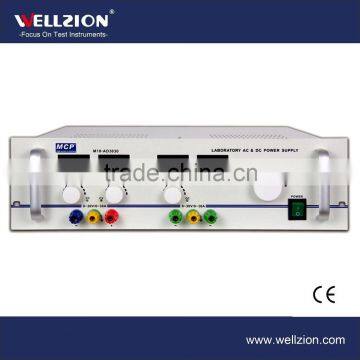

M10-AD3030,30V 30A AC DC Power Supply
Suitable for high school lab. Teaching equipment for schools.
Function & Benefits
- AC and DC combined power supply
- DC constant voltage and constant current
- AC output over load protection
- 19-inch rack mount (3U) and benchtop
- Output from front panel and rear panel
- Temperature controlled fan
Specifications
| Model | M10-AD3030 | M10-AD3030W |
| DC output | ||
| DC output voltage | 0~30V | 0~30V |
| DC output current | 0~30A | 0~30A |
| Line regulation | CV: 6x10-4+3mV; CC: 2x10-3+3mA | |
| Load regulation | CV: 3x10-4+5mV; CC: 2x10-3+5mA | |
| Ripple & Noise | CV: 50mVrms; CC:50mArms | |
| Display accuracy | Voltmeter:± (1.0%Rdg+2digits); Ammeter:± (1.0%Rdg+2digits) | |
| AC output | ||
| AC output voltage | 0~30V | I: 0~30V II:0~250V |
| AC output current | 0~30A | I: 0~30A II:0~4A |
| Display accuracy | Voltmeter:± (1.0%Rdg+2digits); Ammeter:± (1.0%Rdg+2digits) | |
| Input voltage | 220~240VAC ±10%, 50Hz or 110~127VAC ±10%, 60Hz | |
| Dimensions | 19" 3U | 19" 3U |
| Weight | 22kg | 22kg |
Model M10-AD3030 M10-AD3030W
DC output
DC output voltage 0~30V 0~30V
DC output current 0~30A 0~30A
Line regulation CV: 6x10-4+3mV; CC: 2x10-3+3mA
Load regulation CV: 3x10-4+5mV; CC: 2x10-3+5mA
Ripple & Noise CV: 50mVrms; CC:50mArms
Display accuracy "Voltmeter:± (1.0%Rdg+2digits);
Ammeter:± (1.0%Rdg+2digits)"
AC output
AC output voltage 0~30V "I: 0~30V
II:0~250V"
AC output current 0~30A "I: 0~30A
II:0~4A"
Display accuracy "Voltmeter:± (1.0%Rdg+2digits);
Ammeter:± (1.0%Rdg+2digits)"
Input voltage "220~240VAC ±10%, 50Hz
or 110~127VAC ±10%, 60Hz"
Dimensions 19" 3U 19" 3U
Weight 22kg 22kg
