M10-AD2210,30V 5A AC DC Power Supply
- 10000 Piece / Pieces per Month
- xiamen shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM | |
| Model Number | M10-AD2210 | Output Power | 101 - 200W | |
| Output Type | Dual | Input Voltage | Other, 220~240VAC ±10% or 110~127VAC ±10% | |
| Output Voltage | 30V | Output Frequency | 50/60Hz | |
| Output Current | 5A |
Product Description

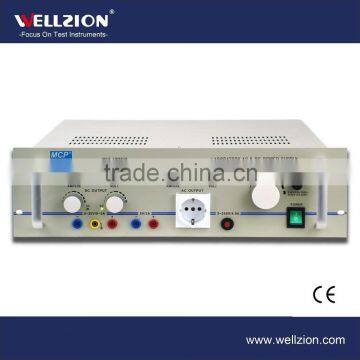

M10-AD2210,30V 5A AC DC Power Supply
Suitable for high shool lab. Teaching equipment for shools.
- AC and DC combined power supply
- DC constant voltage and constant current
- AC output over load protection
- 19-inch rack mount (3U) and benchtop
- Output from front panel and rear panel
- Temperature controlled fan
| Model | M10-AD2205 | M10-AD2210 |
| DC output | ||
| DC output voltage | 0~30V,5V | 0~30V,5V |
| DC output current | 0~5A,3A | 0~5A,3A |
| Line regulation | CV: 1x10-4+3mV; CC: 2x10-3+3mA ; Fixed output 10mV | |
| Load regulation | CV: 1x10-4+5mV; CC: 2x10-3+5mA ; Fixed output 10mV | |
| Ripple & Noise | CV: 1mVrms; CC: 3mArms ; Fixed output 10mV | |
| Fixed output accuracy | 2.5% | |
| Display accuracy | Voltmeter:± (0.2%Rdg+2digits); Ammeter:± (1.0%Rdg+2digits) | |
| AC output | ||
| AC output voltage | 0~250V | 0~250V |
| AC output current | 2.5A | 4.5A |
| Display accuracy | Voltmeter:±(1.0%Rdg+2digits);Ammeter:±(1.0%Rdg+2digits) | |
| Input voltage | 220~240VAC ±10%, 50Hz or 110~127VAC ±10%, 60Hz | |
| Dimensions | 19" 3U | 19" 3U |
| Weight | 14kg | 16kg |
Model M10-AD2205 M10-AD2210
DC output
DC output voltage 0~30V,5V 0~30V,5V
DC output current 0~5A,3A 0~5A,3A
Line regulation CV: 1x10-4+3mV; CC: 2x10-3+3mA ; Fixed output 10mV
Load regulation CV: 1x10-4+5mV; CC: 2x10-3+5mA ; Fixed output 10mV
Ripple & Noise CV: 1mVrms; CC: 3mArms ; Fixed output 10mV
Fixed output accuracy 2.5%
Display accuracy Voltmeter:± (0.2%Rdg+2digits); Ammeter:± (1.0%Rdg+2digits)
AC output
AC output voltage 0~250V 0~250V
AC output current 2.5A 4.5A
Display accuracy Voltmeter:±(1.0%Rdg+2digits);Ammeter:±(1.0%Rdg+2digits)
Input voltage 220~240VAC ±10%, 50Hz or 110~127VAC ±10%, 60Hz
Dimensions 19" 3U 19" 3U
Weight 14kg 16kg
