AT526,33.000k Ohm AC Low Ohm Meter

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port xiamen shenzhen
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	OEM
Model Number	AT526	Display Type	Digital Only
Measuring Range	Resistance: 0.001mΩ~33.000kΩ ; Voltage: 0.00001V~120.000VDC	Testing Voltage	198VAC~240VAC/110V
Accuracy Class	Resistance: 0.2% Voltage: 0.01%	Operating Temperature	Normal Tempertaure

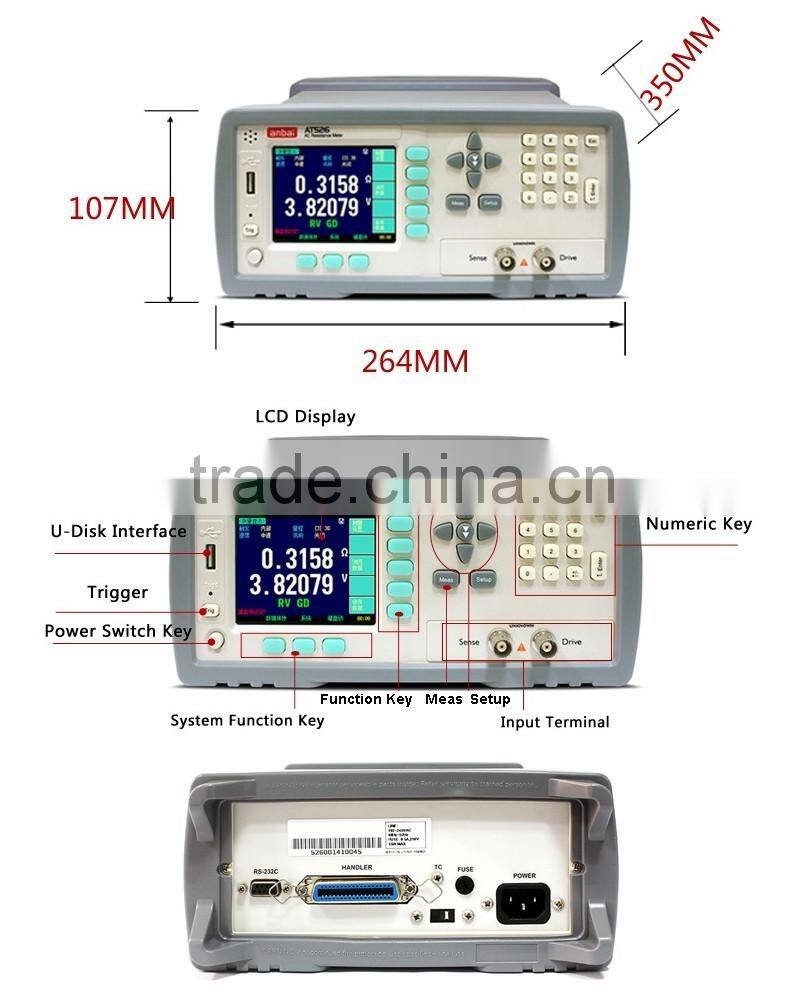

Dimensions	264mm(W)107mm(H)350mm(D)

Product Description

AT526,33.000k ohm AC Low Ohm Meter

Product Overview

AT526 is a AC resistance meter with high precision and high stability, which adopts high-performance 32dgt ARM micro processor to control. 3.5 inches true-color LCD Chinese and English display and it is easy to operate.It is high performance and intelligent instruments which is widely applied to UPS online batteries measurement,test contact resistance, battery voltage and battery internal resistance. Resistance testing uses vector test philosophy and voltage testing adopts difference test philosophy so as to accurately test open-circuit voltage and internal resistance. Can avoid the error resulted in pyroelectricity. The sorting and beep settings apply to automation production line test. The USB interface is used to remote control and data acquisition and analysis and suitable for the volume production of batteries.

Function & Benefits

3.5 inch TFT LCD display
Adopt vector method and measure multi parameter silmutaneously
Comparator(sorting) function
Detection of damage test wire
Compatible with SCPI

Specifications

Parameters	AC resistance, DC voltage
Accuracy	Resistance: 0.2% Voltage: 0.01%
Measurement Range	Resistance: 0.001mΩ~33.000kΩ Voltage: 0.00001V~120.000VDC
Signal Source	AC 1kHz, open-circuit voltage < 20mV, measurement current: < 150mA
Range	Automatic and manual with 5 ranges
Speed	145 t/s, 30 t/s, 10 t/s, 1 t/s
Result Display	Show,ΔABS,Δ%, sorting result
Display Max	Resistance: 33,000, Voltage: 1,200,000
Adjustment	Short-circuit reset for all range
Comparator	RHI/RNG/RLO output VHI/VNG/VLO output ABS tolerance ±TOL sorting PER tolerance ±TOL sorting SER sorting
Trigger	Internal, manual, external and remote
Interface	RS232C, Handler interface (PLC)
Display	3.5 inch TFT LCD display
Language	Chinese,English
Power Supply	Voltage:85V AC~240V; AC Frequency:50Hz; Power:Max 15VA
Dimensions	264(W)mm107(H)mm350(D)mm
Weight	4kg

Applications

All kinds of contact resistance measurement
Li-battery, alkaline cell and lead accumulator determination of degradation and evaluation of lifetime
UPS test online and lead accumulator factory inspection
ESR test of super capacitor
