AT5120,20 Channels DC Resistance Meter

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port xiamen shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	OEM
Model Number	AT5120	Display Type	Digital Only
Measuring Range	1μΩ~30KΩ	Testing Voltage	198V AC - 240V AC/110V
Accuracy Class	0.05%	Operating Temperature	0~80°C
Dimensions	264(W)mm107(H)mm350(D)mm

Product Description

AT5120,20 Channels DC Resistance Meter

Product Overview

AT5120 is a brand new design wide range and multi-channel resistance meter with high accuracy, which can scan and test 20 channels of resistance and can set a comparator for each channel. AT5120 adopts high performance ARM micro processor control. The true-color 3.5 inches LCD can display 20 channels of resistance simultaneously. Resistance range 1μΩ~30KΩ and max display result 30,000 digits. Its temperature compensation function can adapt different testing requirements. It can be applied to automation equipment. RS232C and Handler interface output 20 channels so as to improve the testing ability of production automation.

Function & Benefits

20 channels resistance scan measurement
3.5 inch True-color TFT-LCD display
Can set resistance high/low limit independently
Temperature compensation function
Keyboard lock function

Specifications

Channel	20 channels(Scanning test)
Parameter	DC resistance
Accuracy	0.05%
Measurement Range	1μΩ~30KΩ
Signal Source	Max current:<1A
Range	Automatic, manual
Speed	Fast and low can be adjustable
Result Display	20 channels show
Max Reading	30,000
Adjustment	Short circuit zero reset within full range
Comparator	Independently set 10 channels
Trigger	Internal and remote
Display	3.5 inch TFT LCD display

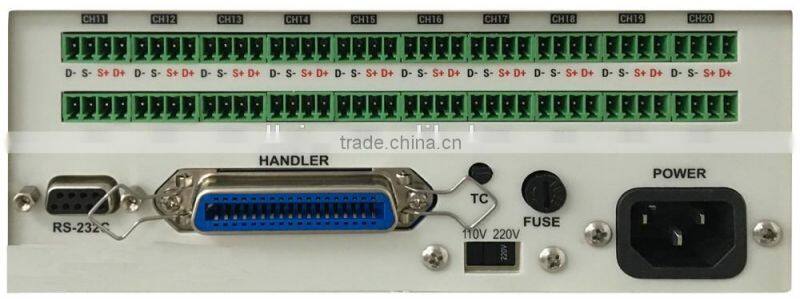

Interface	RS-232C interface (SCPI instruction set),HANDLER interface(PLC interface)
Temperature	Accuracy: 0.2°C, temperature range: 0~80°C
Method	Four-terminal shield for each channel(including 2 detection element and 2 driving element)
Power Supply	Voltage: 198V AC - 240V AC Frequency: 50/60Hz Power: Max 15VA
Dimensions	264(W)mm107(H)mm350(D)mm
Weight	4kg

Applications

Multiple winding transformer DC resistance measurement
Coil DC resistance measurement
Motors Multiple winding resistance measurement
