Home > Products > Digital Calibrator > ETX-2010,Temperature Calibrator,calibrator temperature,portable temperature calibrator,0.02% Accuracy

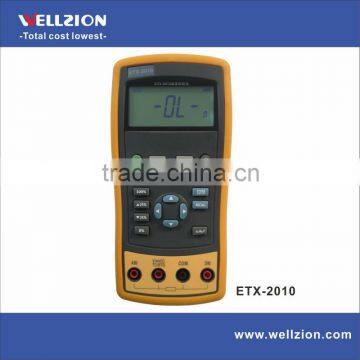

ETX-2010,Temperature Calibrator,calibrator temperature,portable temperature calibrator,0.02% Accuracy

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port xiamen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Model Number	ETX-2010
Usage	Industrial		Theory	Temperature Sensor

Product Description

Specifications

asure DC V, DC mV, resistance ,TC and RTD
2.Outputs resistance, simulation of TC and RTD

Features and Benefits

It allows you to measure DC V, DC mV, resistance ,TC and RTD.
Outputs resistance, simulation of TC and RTD.
Automatic and manual cold end temperature compensation for TC.
Manual stepping, automatic stepping, 0~100% phase step and ramp output.
Super-strong protection:The waterproof grade is IP67. Automatic protection against the signal terminals connect to the 220V.

Summary of Source and Measure Functions

Function	Measure	Source
DC V	0~30V	Not available
DC mV	0~120mV	0mV~100mV
Resistance	0~3200Ω	0~3200Ω
RTD	Pt100, Pt1000, Cu50, Cu100	Pt100, Pt1000, Cu50, Cu100
TC	E,J,K,T,B,R,S,N	E,J,K,T,B,R,S,N
Others	Stepping output, ramp, phase step output, user-defined range

Specifications

Specifications are based on a one year calibration cycle and apply from +18°C to +28 °C unless stated otherwise. All specifications assume a 10 minute warmup period.

DC Voltage Measurement

Range	Maximum measurement range	Resolution	Accuracy (% of reading+counts)
Range	Maximum measurement range	Resolution	ETX-1810	ETX-2010
30V	0V~31V	0.001V	0.05+2	0.02+2
100mV	-15mV~125mV	0.01mV	0.05+2	0.02+2
-10°C~18°C,+28°C~55°C temperature coefficient, ±0.005%FS/°C.Input resistance: >1MΩ.

Resistance Measurement

Range	Maximum measurement range	Resolution	Accuracy (Ω)
			ETX-1810		ETX-2010
			2-wire, 3-wire	4-wire	2-wire, 3-wire	4-wire
400Ω	0~440Ω	0.01Ω	0.25	0.15	0.15	0.10
3200Ω	420Ω~3600Ω	0.1Ω	1.5	1.0	1.0	0.5
-10°C~18°C,+28°C~55°C temperature coefficient,±0.005%FS/°C. Exciting current during measurement: 400Ω:1.0mA±10%; 3200Ω:0.2mA±10%; Two-wire: Conductor resistance is excluded from errors. Three-wire: Matching test line should be used. The total resistance of conductor should not be larger than 25Ω.

Temperature, TC

Graduation

Range

Resolution

Accuracy (Ω)

ETX-1810

ETX-2010

-200°C~0°C

0°C~1200°C

0.1°C

1.5°C

1.0°C

0.7°C

-200°C~0°C

0°C~1370°C

0.1°C

1.8°C

1.2°C

0.8°C

-200°C~0°C

0°C~400°C

0.1°C

1.8°C

1.2°C

0.8°C

-200°C~0°C

0°C~950°C

0.1°C

1.5°C

1.0°C

0.9°C

0.7°C

-20°C~0°C

0°C~500°C

500°C~1750°C

1°C

4°C

2.5°C

2°C

2.5°C

1.8°C

1.4°C

-20°C~0°C

0°C~500°C

500°C~1750°C

1°C

4°C

2.5°C

2°C

2.5°C

1.8°C

1.5°C

600°C~800°C

800°C~1000°C

1000°C~1800°C

1°C

3.5°C

2.5°C

2°C

2.2°C

1.8°C

1.4°C

-200°C~0°C

0°C~1300°C

0.1°C

2.0°C

1.2°C

1.5°C

0.9°C

Errors of cold-junction compensation are not included in the table.

Accuracy of cold-junction compensation: 1.5°C

Temperature, RTD

The calibrator accepts Pt100, Pt1000, Cu50 and Cu100, etc. The calibrator accepts RTD measurements inputs in two-, three-, or four-wire connections, with the three-wire connection the most common. A four-wire configuration provides the highest measurement precision, and two-wire provides the lowest measurement precision.
