300/500v Copper Conductor Pvc Insulation Electric Wire
- Shanghai
- T/T
You May Like
-
CCC IEC SGS Copper Conductor PVC Insulated Electric Wire
-
Copper Conductor Pvc Inslated Power Wire
-
CE IEC ISO CCC Certificate Copper Conductor Pvc Insulation Twisted Flexible Electric Wire
-
CE IEC ISO GOST CCC Certificate 300/500v Copper Conductor PVC Insulated Twisted Electric Wire
-
Double Strand Wire Copper Core Pvc Insulated Electric Wire
-
Copper Core Pvc Insulated Electrical Wire
Product Details
| Place of Origin | Shanghai, China | Brand Name | ShangJin or OEM | |
| Model Number | Cu / PVC | Type | Insulated | |
| Application | Overhead | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description
Specifications
this product is fit for AC rated under than 450/750v .IEC or GB standard , CCC certificate .
RV : Copper core PVC insuiation jointed flexible wire .
RVB : Copper core PVC insuiation paralled jointed flexible wire
RVS : Copper core PVC insuiation twisted jointed flexible wire
RVV : Copper core PVC insuiation sheath paralled joined flexible wire
the working temperature of RV-90 model not more than 90°C,other not more than 70°C,
installation temperature not lower than 0°C.
Nominal | Conductor | Nominal | Max overall | Condcutor | Weight | ||
Cu | Al | Cu | Al | ||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 19.2 | - |
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 30.8 | 15.0 |
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 45.5 | 21.0 |
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 65.0 | 29.0 |
10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 110.0 | 52.0 |
16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 170.0 | 70.0 |
25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 270.0 | 110.0 |
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 364.0 | 150.0 |
50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 500.0 | 200.0 |
70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 688.0 | 269.0 |
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 953.0 | 360.0 |
120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 1168.0 | 449.0 |
150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 1466.0 | 551.0 |
185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 1808.0 | 668.0 |

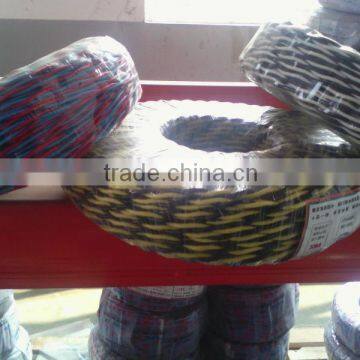

PICTURE'S SHOW ====>
