Product Details
| Place of Origin | Guangdong, China | Brand Name | Haide | |
| Model Number | HD-CCTV-POE/A |
Product Description

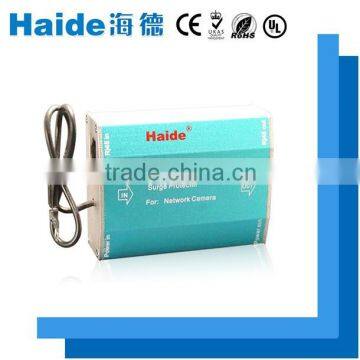

POE blue rj45 lightning protector camera price trade assurance
The product can carry out surge protection respectively of the power supply and video lines of a camera, the enclosure adopts an integral aluminum alloy structure, the product has a small volume and very low output residual voltage, has little insertion loss because the interelectrode capacitance of devices and the attenuation of distributed capacitance to the data signal transmission are fully considered in design, has data transmission rate up to 1000Mbit/s,which can fully meet the requirements of video signal transmission, and has the advantage of rapid response to transient over-voltage.
| Model | HD-CCTV-POE/A | |||
| Protective link | power line | network line | ||
| Nominal working voltage Un | 12V | 24V | 48V | 12V |
| Maximum continuous working voltage Uc | 16V | 32V | 54V | 16V |
| Protection voltage level Up | 150V | 200V | 220V | 24V |
| Nominal discharge current In(8/20us) | 2.5KA | 2.5KA | ||
| Maximum discharging current Imax(8/20us) | 5KA | 5KA | ||
| Rated load current IL | 3A | |||
| Drain current IA | <5uA | |||
| Response time Ta | <25ns | <1ns | ||
| Insertion loss | ≤0.2dB | |||
| Insertion resistance | 1Ω | |||
| Protection grade | IP30 | |||
| External dimension | 108*63.5*28mm | |||
| Sheathing material | shielding metallic aluminium | |||
| Operating temperature rang Tup | -40°c to +80°c | |||
| Interface mode | RJ45 | |||
| Number of guard wire | 45,78 wire | 1,2,3,6 wire | ||
| Order No | 810362 | |||
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
