Home > Products > Other series products > 2p 60KA ac module spd price trade assurance
2p 60KA ac module spd price trade assurance
US$ 15 - 20
/ Set
10 Sets(Min. Order)
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
380V 40KA 1.5 KV class c surge arrestor with price trade assurance
-
16-route 10KA BMC house thunder protector with price trade assurance
-
lightning rod/surge arrester/protector connection price trade assurance
-
40ka surge arrester protection price trade assurance
-
pre-discharge grounding lightning thunder with price trade assurance
-
220V surge protector guangdong equipment price trade assurance
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haide | |
| Model Number | HD-D220BCM60 |
Product Description

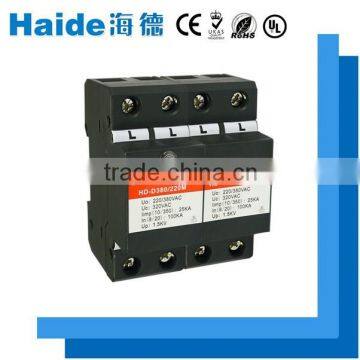

2p 60KA ac module spd price trade assurance
ac module spd price trade assurance
Electric surge protector of composite low-voltage distribution system is designed according to IEC standard. It adopts the most advanced technology of preignition clearance and automatic matching of energy and has invalidation detection indication,standard modularization installation, and powerful discharge capacity of lighting current. It's applicable to the protection of buildings' general supply system against lighting.With 35mm standard guide-way, this lighting arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later .
Model | HD-D220BCM200 | HD-D220BCM100 | HD-D220BCM60 |
| Nominal working voltage Un | 220V | 220V | 220V |
| Maximum continuous working voltage Uc | 320VAC | 320VAC | 320VAC |
| Maximum discharging current limp(10/350us) | 50KA | 25KA | 15KA |
| Nominal discharge current In(8/20us) | 200KA | 100KA | 60KA |
| Voltage protection level Up | 2KV | 1.5KV | 1KV |
| Reponse time Ta | ≤25ns | ||
| Operating temperature range Tup | -40°c to +80°c | ||
| section of minimum installed conductor | 10mm² multi-folded wire | ||
| Protection grade | IP20 | ||
| External dimension | 144*90*64mm | ||
| Sheathing material | flame retardant thermoplastic material | ||
| Mode of connection | parallel connection | ||
| Protection mode | 4+0/3+1/1+1/2+0 | ||
| Freewheeling suppression If | 3KA | ||
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
ac module spd price trade assurance
