Home > Products > Other series products > Black 2KV/1.5KV/1KV lightning protection 220v for trade assurance
Black 2KV/1.5KV/1KV lightning protection 220v for trade assurance
US$ 15 - 20
/ Set
10 Sets(Min. Order)
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Three phase 320V surge discharger with price trade assurance
-
320V 200KA/100KA/60KA design lightning surge arrester price trade assurance
-
2014 hot sale best quality lighting rod protection trade assurance
-
White low output 10KA/20KA spd for led price trade assurance
-
Ball type pre-discharge advanced lightning arrestor price trade assurance
-
275V 10KA surge protector spd street light price trade assurance
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haide | |
| Model Number | HD-D220BCM100 |
Product Description
Black 2KV/1.5KV/1KV lightning protection 220v for trade assurance
lightning protection 220v for trade assurance

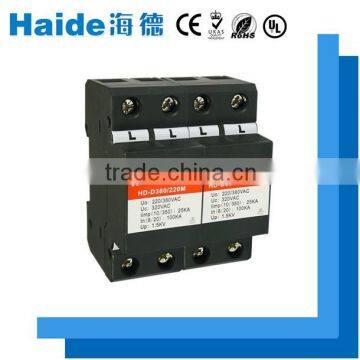

Electric surge protector of composite low-voltage distribution system is designed according to IEC standard. It adopts the most advanced technology of preignition clearance and automatic matching of energy and has invalidation detection indication,standard modularization installation, and powerful discharge capacity of lighting current. It's applicable to the protection of buildings' general supply system against lighting.With 35mm standard guide-way, this lighting arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later .
Model | HD-D220BCM200 | HD-D220BCM100 | HD-D220BCM60 |
| Nominal working voltage Un | 220V | 220V | 220V |
| Maximum continuous working voltage Uc | 320VAC | 320VAC | 320VAC |
| Maximum discharging current limp(10/350us) | 50KA | 25KA | 15KA |
| Nominal discharge current In(8/20us) | 200KA | 100KA | 60KA |
| Voltage protection level Up | 2KV | 1.5KV | 1KV |
| Reponse time Ta | ≤25ns | ||
| Operating temperature range Tup | -40°c to +80°c | ||
| section of minimum installed conductor | 10mm² multi-folded wire | ||
| Protection grade | IP20 | ||
| External dimension | 144*90*64mm | ||
| Sheathing material | flame retardant thermoplastic material | ||
| Mode of connection | parallel connection | ||
| Protection mode | 4+0/3+1/1+1/2+0 | ||
| Freewheeling suppression If | 3KA | ||
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
lightning protection 220v for trade assurance
