Electric Winch for 12V/24V
- HUANGPU
- Credit Card
You May Like
Product Details
| Model Number | TST-08 |
Product Description
Specifications
Good Quality 9500LBS 4*4 WINCH1,SC9500LBS (12/24V) 9500 lbs Heavy Duty Electric Winch
2,Include remote switch
3,G.W.42.5Kg

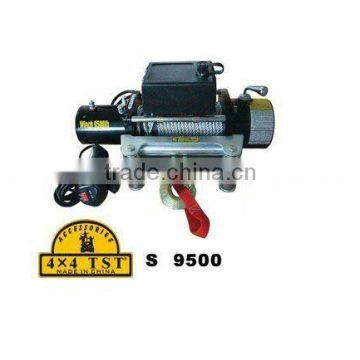

WINCH SC9500 (12/24V)
9500 lbs Heavy Duty Electric Winch
9500LBS FEATURES AND SPECIFICATIONS
Rated line pull: 9500LBS(4300kgs) single line Motor: 5.5HP/4.0kw, Series Wound
Control: Remote switch, 12ft(3.7m)lead
Gear train: 3 Stage Planetary Gear reduction ratio: 265: 1
Clutch: Sliding Ring Gear
Braking Action: Automatic In-The-Drum
Drum Size: Φ 2.5"x8.8"(Φ 63.5mmx224mm)
Cable: 94ft of 5/16" diameter (28m of 8.3mm diameter)
Fairlead: 4-Way Roller Fairlead
Battery: Recommended: 650CCA minimum for winching
Battery Leads: 2 gauge, 72"(183mm) Finish: Black powder coat
Overall Dimensions: 21.1"x6.3"x8.6"(537mmx160mmx218mm)
Mounting Bolt Pattern: 254mmx114.3mm
Weight: N. W. 38kgs, G. W. 42.5Kgs
Packing size: 57x19x34.5cm 1PC/CTN
Main products: Snorkel, Winch, Air jack, Farm jack, Wheel spacer, Winch accessories, Ground anchor, Water baldder, Awnning, Rack bag, Off-road base, Farm jack mount, Winch damper, Tow bar, Hitch ball.
The samples :
If you have any further informations, pls do not hestate to contact us ,thanks .
