Home > Products > Wheelchair Ramp For Bus > FMWR Series Fold Manual Aluminium Wheelchair Ramp for Low Floor Bus

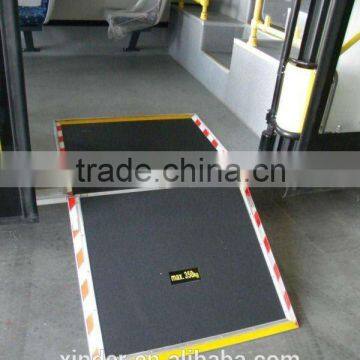

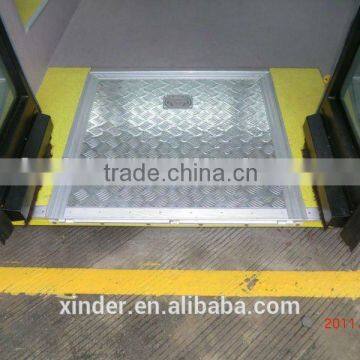

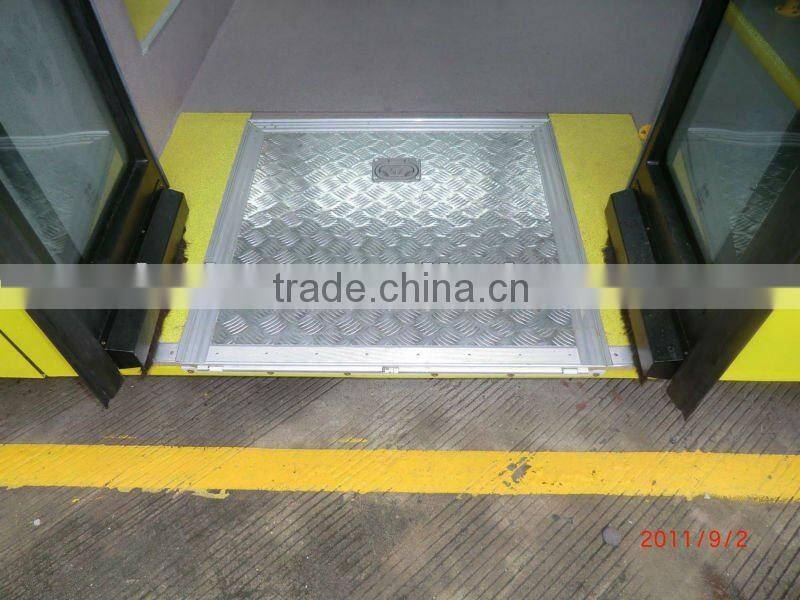

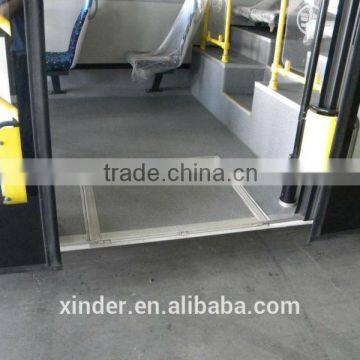

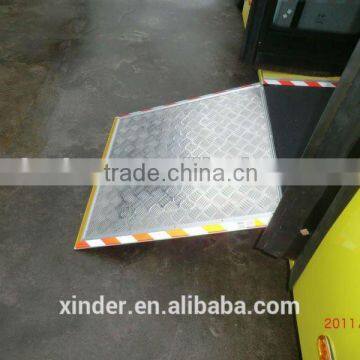

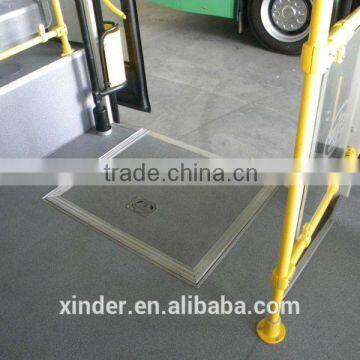

FMWR Series Fold Manual Aluminium Wheelchair Ramp for Low Floor Bus
- SHANGHAI
- Credit Card
You May Like
-
Handicap Disabled Manual Wheelchair Ramp Slope for City Bus With CE Certificate
-
CE Certificated Customization Folding Manual Wheelchair Ramp With 350kg Loading for Bus
-
XINDER CE MWR Model Manual Folding Wheelchair Ramp for Disabled and Wheelchairs Used on Low Floor City Bus
-
XINDER Manual Wheelchair Bus Ramp for Disabled With CE Qualified From China
-
350KG CE Quality EWR Electric Portable Wheelchair Ramp for the Disabled and Old Used on Low Floor City Bus
-
350KG Loading Electric Wheelchair Ramp for City Bus
Product Details
| Type | Flooring | Certification | ISO9001:2000 | |
| Size | 976*920 | Material | mainly aluminum and iron | |
| OEM No. | Supplied | Bus Model | Yutong Kinglong | |
| Place of Origin | Jiangsu, China | Brand Name | xinder | |
| Model Number | FMWR-2A |
Product Description
1. Introduction
This FMWR-1A fold manual wheelchair ramp can be applied for low-floor city bus, and can be installed on the vehicle floor.
It also should be controlled manually and the material of base is aluminum. It is installed on the vehicle floor, when need it, you just unfold the ramp. There will be a slope which can help the disabled get into/out of vehicle.
The operation of manual wheelchair ramp is easy, simple, independent and wholly manual, because
it doesn’t need to connect with vehicle electric system. This ramp takes no space of vehicle.
Moreover, the platform of ramp and the floor of vehicle are at the same level, so there is no effect for passengers.
2. Technical Parameter
Driving Mode: | Manual |
Dead weight: | 32kg |
Max Loading Capacity: | 350kg |
Weight of working platform: | 15kg |
Main material: | aluminum & iron |
Test: | 100000 times |
3.Safety Function:
Ø Adopt anti-skid aluminum plate on the surface of platform
Ø With danger symbol on the outer-edge of ramp
Ø The ramp is interlocked with passenger door.
4. Installation :
Be installed on the vehicle floor. When need it, you just unfold the ramp. There will be a slope which can help the disabled get into/out of vehicle.
5. DIMENSIONS
Unit: mm
Model | Platform Net Size (A×B) | Overall Width (C) | Overall Height (D) | Overall Length (E) | Effective height(F) | Platform weight |
FMWR-1A | 885*920 | 952 | 40.5 | 903 | 20.5 | 15 Kg |
FMWR-2A | 976*920 | 952 | 40.5 | 993 | 20.5 | 15 Kg |
FMWR-3A | 805×920 | 952 | 40.5 | 820 | 20.5 | 15 Kg |
FMWR-A series Has passed CE certificate
Packaging Details:
1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases
Delivery and shipping Details:
1)Usually be shipped by maritime transport
2)if it is landlocked countries, generally
land and sea transport.
3)15—30 days after confirmation of the purchase order
we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat
We use Carbox for Electric step,wheelchair restraint system

Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take 5 - 15 days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.
Q5.Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
Q6. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
