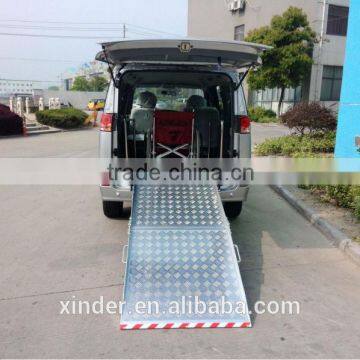

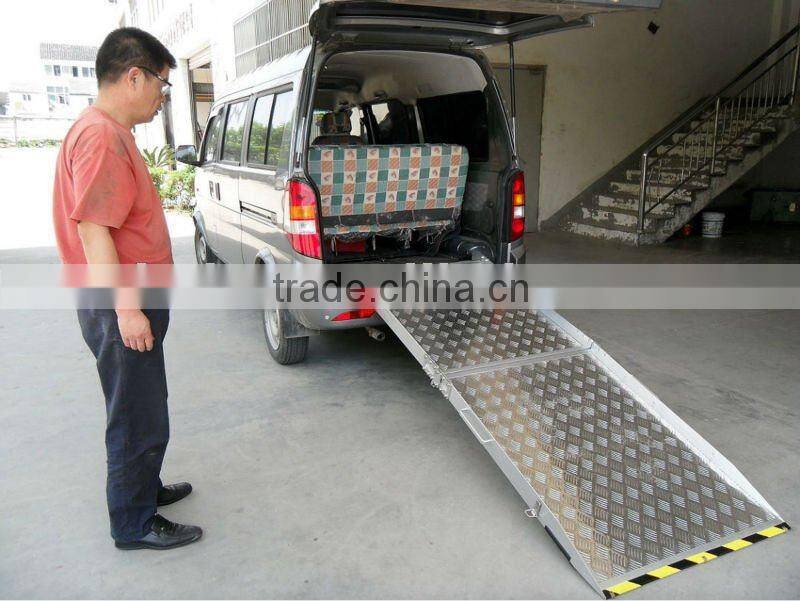

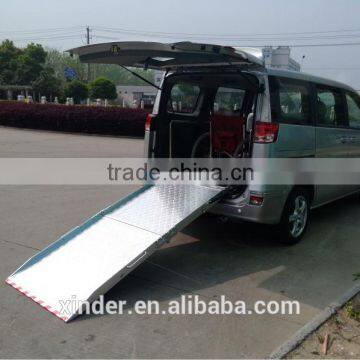

2015 Hot Sale BMWR Electric Wheelchair Ramp for Van

Specifications

1.BEWR is mainly combined with 2 pieces of ramps
2.main material of ramp is aluminum and honeycomb board with ribbed plate

1. INTRODUCTION

• This electric wheelchair ramp is mainly combined with 2 pieces of ramps. The operation is very easy.
• This ramp is wildly used for vehicle with high floor and limited installation room for ramp. This kind of ramp is the best choice.
• The main material of this ramp is aluminum and honeycomb board with ribbed plate, which is anti-skidding, light and with strong loading capacity.
• Sometimes, according to customer’s requirement, we can stick 3M anti-slip covering on ramp working surface.

2. ADVANTAGES

• Easy installation: this ramp will be assembled before delivery. User only needs to make installation room on floor. And then mount it according to right way in user manual, which is easy and simple.
• Platform: the main material of platform is steel, which is light, strong loading capacity and excellent corrosion resistance
• Less installation requirement: this ramp is mainly used for van, minivan and cars. It is installed at the rear door. It is installed on the floor, so there is no requirement of space under floor, and no requirement for floor height.

3. DIMENSIONS

4. SPERCIFICATIONS

model: BEWR-1
loading capacity: 350 kg
own weight: 45kg
test: 100000 times
installation: at the rear door of vehicle

• Safety function:
  The main material of platform is steel, which is anti-skidding
  There is warning sticker at the edge of ramp

• Installation: It is installed at the rear door  of van, minivan or car. After this ramp unfolded, there is slop between vehicle floor and ground, which make wheelchair get into vehicle easily.

• Adjustment: This series wheelchair ramp has several sizes for choice. Customer should inform us the size needed or the size of vehicle door, we will provide the suitable wheelchair ramp.

• Operation:
  When this ramp is needed, the driver should first stop vehicle, and pull brake.
  And then press the switch to open/unfold ramp. There will be slop which makes entrance easy.
  After wheelchair get into/out of vehicle, press the switch again to stow this ramp.

5. INSTALLATIOM ROOM

• Net width of door: 1100 mm
• Net height of door: 1200 mm
• Accessible depth: 680 mm
