HOT SELLING Multi-function CCTV Testers PTZ RTS-321 Control Test UTP LAN AUDIO

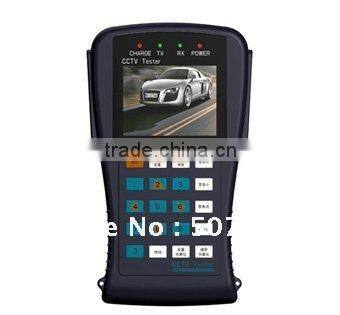

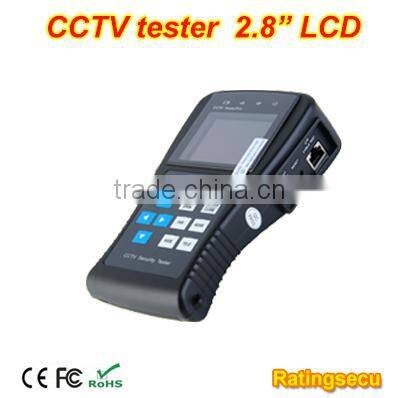

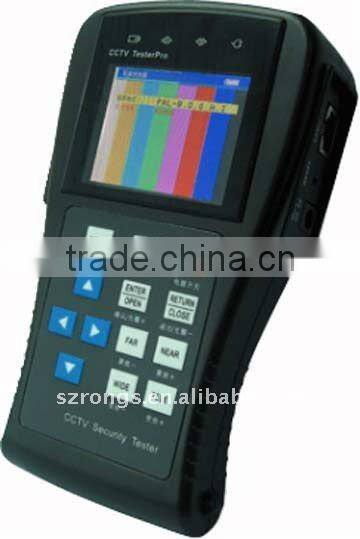

CCTV PTZ monitor Tester  Multi-function  RTS-321

2.8 inch High definite LCD Chinese display + PTZ controller + image producer+ network cable testing function

CCTV Camera Tester   CCTV Tester PTZ

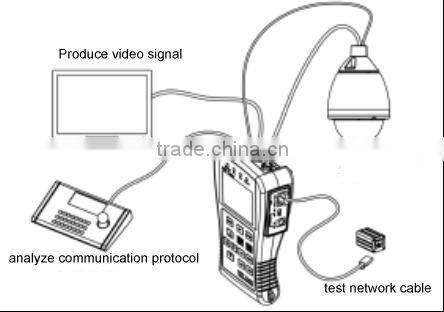

The tester is a professional testing tool which is exploited for video monitory scenes installation and maintain. It's have multi functions including display video, PTZ control, image producer, and network cable testing. It's simple and easy for operation, convenient for carry, economical for save money, is a good assistant for workers.

 Application Area:

Video monitoring projects installation and maintain

High speed Dome camera testing and camera testing

Transmission channel testing of video

Control PTZ protocol

Features:

2.8 inch digital LCD display screen, 960 X 240 resolution

Low power consumption, 10 hours working timeChinese / English operate menu, simple, easy and beautiful

The brightness, contrast ratio, color saturation are adjustable

NTSC / PAL auto identify and adjust

Image producer can sent various modes of color images (white, yellow, cyan, green, pink, red, blue, black )

Catch and display PTZ control protocol code Enhanced network cable testing function, can testing any two or more connect linear ordering, and display cable number

Support more than 20 kinds of protocols,  including Pelco-D, Pelco-P, Samsung etc.

Support RS232, RS485 ports, speed rate 150 ~ 19200/bps

Built-in Lipo battery to supply power, more convenient and stable

Small and simple, image display and data control at the same time

Professional design, easy for carry and use, operator almost can use it directly without training

One person can operate it to finish the testing, aim and focus of camera, you can test and verify every camera and needn't to back to monitoring center, save your time and improve working efficiency.

 Tester Data:
