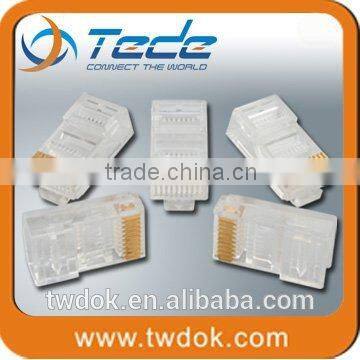

RJ45 Modular plug With Magnetics Filter and USB Combo Connector
- Yantian
- T/T Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | Tede or OEM moducal plugs | |
Model Number | TD-MP-2203 |
Product Description
Specifications
Modular plug 8P8C RJ451.CE and Rohs Approved
2.3-50 Micron Gold Plating
3.UTP/FTP/SFTP Jack
4.100pcs/box
Cat5e Cat6 UTP/FTP/SFTP
Modular plug 8P8C RJ45,RJ11 RJ12 :
Specifications
The Plug offer support for phone or voice applications in home or office abling systems
Current Rating:1.5 AMPS at 25'C
Voltage Rating:125 V AC
Insulation Resistance:1000 MΩ Min. at 500V DC EIA-364-21C
Withstand Voltage:1000 V AC RMS OR 1500 V DC at 0.5mA 50 Hz/60Hz Minute EIA-364-20B
Contact Resistance:40 mΩ Max. EIA-364-23B Mechanical
Retention Strength:57.83N Min.EIA-364-98
Durability:1000 Mating Cycles Min. Environmental
Operation Temperature:-20'C~+70'C
Storage Temperature:-10'C~+40'C Relative Humidity<80% Material
Housing:PC
Flammability Class:UL94V-0/V-2
Terminal:Thickness 0.35mm Phosphor Bronze Selectrive Gold Plating Over Nickel
Gold Plating: G/F inch,3u Inch,6u inch,15u inch,30u inch,50u inch
Package
100pcs/box
Shipping
Delivery Methods | By UPS/DHL/FEDEX By Air/Sea |
Delivery Detail | 3-7 days depend on the quantity |
Leading Time | 5-20 days depend on destination |
