Headlamp adjuster
- 2000 Piece / Pieces per Month
- Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Hong Kong, China | Brand Name | Johnson | |
| Type | DC Motor | Use | Other, Headlamp adjuster | |
| Motor | Brush | Voltage | 12V | |
| Certification | Other, ELV |
Product Description
Specifications

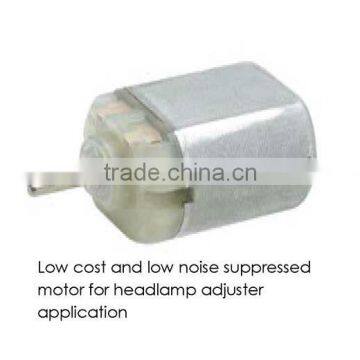

12v DCLow cost and low noise
For headlamp adjuster
Diameter : 20.4 mm
Length:38.3mm
Characteristics:
...............................................................................................................................
Diameter : 20.4 mm
Length : 38.3 mm
Flat : 15.4 mm
Shaft Diameter : 2.000mm
Nominal Voltage : 11.2 V
Torque Constant : 7.934 m-Nm/A
Dynamic Resistance : 9.071 Ohms
Motor Regulations : 1319.241 Rpm/m-Nm
Pole Number : 3
Standard Data:
...............................................................................................................................
Operating Temperature : -40 — 85ºC Storage Temperature : -40 — 85ºC
Power Consumption : 4.3 W
Power Output : 2.6 W
Running Torque : 0.5 cNm
Mounting : Rear housing tapped holes
Electrical Connection : Female Terminal
Winding Temperature (Tmax) : 180ºC
Direction of Rotation : CW/CCW
Approvals : ELV
Electrical Performance:
...............................................................................................................................
No Load Stall Max Eff Max Power
Speed (Rpm) 12170 9858 6085
Current (A) 0.072 1.232 0.29 0.65
Torque (mNm) 9.23 1.75 4.61
Efficiency (%) 55.12
Power (W) 1.81 2.94
