Home > Products > LED High Power LED Diode > 1w 3w white high power led 120-130lm US Bridgelux chip for led lights

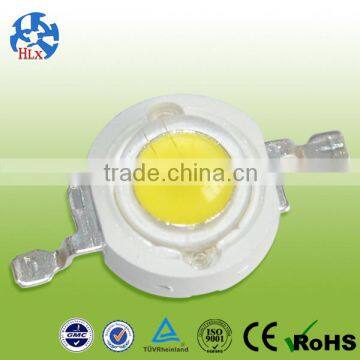

1w 3w white high power led 120-130lm US Bridgelux chip for led lights
- Shenzhen
- Credit Card PayPal
You May Like
-
popular 10watt 9-12V integrated high power led 100-110lm/w
-
Preminum quality cool white square-bracket shape high power led 50w Shenzhen
-
30-36V warm white square-bracket shape high power led component chip 50 watt
-
5w high lumen epistar/bridgelux/cree 1w/3w high power led diode,rgb high power led diode 5w,10w,20w,30w,50w,100w for lighting
-
50W white square-bracket shape high power led light source lamp 30-36v
-
Super bright 50watt cool white high power led component 30-36V
Product Details
Place of Origin | Guangdong, China | Brand Name | HLX | |
Model Number | HLX-P8B5WPWC | Type | LED | |
Package Type | Through Hole | Max. Forward Voltage | 3.8V | |
Max. Reverse Voltage | 3.2V | Max. Forward Current | 350mA | |
Max. Reverse Current | 10μA |
Product Description
Specifications
1w 3w high power led1. 6500-7000K
2.120-130lm
3.Low power consumtion,High intensity
4CE,RoHS,ISO9001
Specifications
Epistar chip led 3w/1w high power led diode with heat sink
white red blue green led
130lm&220lm1w 3w
CE,RoHS,ISO9001
Epistar chip led 3w `1w high power led with heat sink 130lm
1.Power: Epistar chip led 1w
2,Long life: 50000+ hours
3, Luminous flux: 120-130lm 130-140lm / 220lm 3w
4, Beam angle: 120/140/90 degree
5, Color temperature: 2700-7000K, warm white/natural white/ cool white
5, Forward current: 350mA
6, Forward voltage: 3.0-3.4V
7, Chip brand: Epileds, Epistar, Bridgelux
8, Other watt leds: 3w 5w 10w 20w 30w 50w 100w high power led diodes
Epistar chip led 3w 1w high power led with heat sink 130lm
1,Power: Epistar chip led 3W
2,Long life: 50000+ hours
3, Luminous flux: 200-220lm
4, Beam angle: 120/140/90 degree
5, Color temperature: 2700-7000K, warm white/natural white/ cool white
6, Forward voltage: 3.0-3.4V
7, Chip brand: Epileds, Epistar, Bridgelux
8, Other watt leds: 3w 5w 10w 20w 30w 50w 100w high power led diodes
Epistar chip led 3w 1w high power led with heat sink 130lm
1,our products are encapsulated with high quality matiral imported from Japan, American and Taiwan,so light failure rate is low
2,we can produce various types of led products according to your request in terms of color, luminace and beam angle.
3,we specialize in the production of LED with the alibity to offer quality assurance, prompt delivery and reasonable price. Certificates:CE.ROHS,FCC
Epistar chip led 3w 1w high power led with heat sink 130lm
Epistar chip led 1w | Technical Specification | ||||||
Part Number | Emitting Color | λD(nm) | Typical Lumens | Viewing Angle(degree) | Voltage | Current(mA) | |
HLX-P8B1WPWC | Pure white | 5000K-9000K | 50-120lm | 90/140 | 3.0-3.8V | 350 | |
HLX-P8B1WWC | Warm white | 2300K-3800K | 40-110lm | 90/140 | 3.0-3.8V | 350 | |
HLX-P8B1WSBC | Blue | 455 | 475 | 6-30lm | 90/140 | 3.0-3.8V | 350 |
HLX-P8B1WJGC | Green | 500 | 535 | 40-70lm | 90/140 | 3.0-3.8V | 350 |
HLX-P8B1WORC | Red | 620 | 630 | 30-60lm | 90/140 | 3.0-3.8V | 350 |
HLX-P8B1WSYC | Yellow | 585 | 595 | 30-60lm | 90/140 | 3.0-3.8V | 350 |
Packing of Epistar chip led 3w 1w high power led with heat sink 130lm
Factory Tour
If you are interested in our Epistar chip led 3w&1w leds, please don't hesitate for contact us!
Contact Us
- Shenzhen Highlight Electronics Co., Ltd.
- Contact nameSarah Z Chat Now
- Phone086-0755-27471835
- Address6th Floor,Building E,HuaChuangDa Technology Park,HangCheng Avenue,XiXiang Town,BaoAn District,ShenZhen,GuangDong province,China (Mainland), Shenzhen, Guangdong
