10w high lumen epistar/bridgelux 1w/3w high power led diode,rgb high power led diode 5w,10w,20w,30w,50w,100w for led lighting

Place of Origin	Guangdong, China		Brand Name	HLX
Model Number	HLX-P8B1WRGBC-02		Type	LED
Package Type	Through Hole		Max. Forward Voltage	4.0v
Max. Reverse Voltage	7V		Max. Forward Current	700mA
Max. Reverse Current	10uA

Specifications

1w/3watt rgb high power led diode
1.high brightness,well consistency
2.high quality,long life,green produce
3CE,SGS,ISO9001

1w 3w 5w 10w 20w 30w 50w 100w Epistar/Bridgelux high power led diodes type

3w high power leds 200-230lm

1w high power leds 100-120lm

CE, SGS, ISO9001 approved

Multi-color high power led diodes: white, Red, Green, Blue, Yellow, Purple
Epistar Bridgelux chip or other brands

High lumen, 100-120lm/w



100-150lm/w Epistar/Bridgelux 1watt high power led & 3 w high power leds diode with heat sink for street light, high bay led

3 W HIGH POWER LEDS DIODES (WHITE)
POWER CONSUMPTION	3 WATTS HIGH POWER LEDS
DIMENSION	Ø8*6.7(H)MM
ALUMINUM PLATE	Ø20.6MM
VOLTAGE	3.6-4.2V
CURRENT	700MA
LUMEN OUTPUT	160-200LM
COLOR TEMP	2700-3800K & 5000-7000K
BEAM ANGLE	90°/120°/140°
OPERATION TEMP	-20°C~40°C
WARRANTY	2 YEARS
LIFESPAN	40,000HOURS
CERTIFICATE	CE/ROHS/ISO9001



--1W HIGH POWER LEDS DIODES (WHITE)

Power consumption: 1w high power led diode

Dimension: Ø8*5.4(H)mm

Voltage: 3.0-3.8V
Current: 350mA

Luminous: 80-90lm, 90-100lm, 100-110lm, 110-120lm

CCT: Pure White 5000-7000K

CCT: Warm White 2700-3800K

Beam Angle: 90°/120°/140°
Lifespan: 40,000 hours
Warranty: 2 yesrs
Certicifate: CE & RoHS & UKAS ISO9001

1w high power led available with PCB heat sink.



Raw materieals used for LED are all in high quality level to insure the superior luminous efficiency, long lifespan, and stability. Further with product life cycle contrastive testing, the high level material selected, which definitely achieve minimum brightness decay.



--RGB COLOR 1W &3 W HIGH POWER LEDS DIODES MULTIPLE CHOICES

Item	Color	λd	Light Efficacy	Vf(V)	IF(mA)	Beam Angle
1w high power leds	Red	R:620-630nm	30-50lm	2.2-2.6	350	90/120/140
	Yellow	Y:587-595 nm	30-50lm	2.2-2.6	350	90/120/140
	Purple	P:390-410nm	5-8lm	3.2-4.0	350	90/120/140
	Green	G513-530nm	80-100lm	3.0-3.8	350	90/120/140
	Blue	B:460-470nm	20-35lm	3.0-3.8	350	90/120/140
3 w high power leds	Red	R: 620-630nm	70-90lm	2.4-2.8	700	90/120/140
	Yellow	Y: 587-595 nm	70-90lm	2.4-2.8	700	90/120/140
	Green	G: 520-530nm	90-110lm	3.0-3.8	700	90/120/140
	Blue	B: 460-470nm	40-50lm	3.0-3.8	700	90/120/140
	Purple	P: 390-410nm	8-12lm	3.8-4.4	700	90/120/140

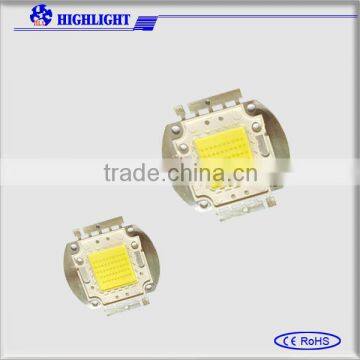

--WHITE 5W/10W/20W/30W/50W/100W HIGH POWER LEDS DIODES



"HIGHLIGHT" Factory Power

1. 8yrs experienc in LED manufacture from 2006.

2. Pass CE/Rohs/ISO9001, strictly follow quality regulation, gurantee stable quality.

3. Advanced equipments: bonding/encapsulation machine, oven, automatic spectral machine, integrating spheres, power tester.

4. High power Led chip and silica gel and other material are from Japan, American, Taiwan.

5. Competitive 1w 3nw high power led diode price and other high power leds.









High power leds diodes Package

1w 3w high power led diode without heatsink: 50pcs/blister

1w 3w high power led diode with star heat sink: 40pcs/blister





 Welcome your inquiry for our 1w high power leds diodes. 3w high power led diodes
