Spindle Conveyor UV Coating Line Vacuum Metallizer

Spindle Conveyor UV Coating Line Vacuum Metallizer:

Working process

1) Base painting: Load products on line—electrostatic cleaning—PP Paints spraying (for pp material)----IR oven----base painting—IR leveling preheating—UV curing—cooling—off line

2) Vacuum coating: load products in ZZ series evaporation vacuum coating machine-metallizing-unload products

Top painting: load products on UV line—electrostatic cleaning—top painting—IR leveling preheating—UV curing—cooling—unload products (made-up articles)

1. turnkey project of dustfree gun-fixed Automatic UV Coating Line + Vacuum Coating Chamber Plant for plastic parts

2. turnkey dustfree robot automatic UV spray coating line

3. turnkey dustfree reciprocator automatic spray coating line

4. turnkey dustfree automatic/manual spray coating plant (UV line / PU line)

5. air make-up unit / air handling unit

6. centralized thermostat air conditioning system

7. clean class (10,000-100,000 class)

8. IR curing oven / convection oven

9. UV curing oven

10. various conveyor system

Vacuum Coating Chamber Plant for UV Coating plant

1.vacuum coating chamber

2.vacuum coating plant + UV coating plant

3.SS vacuum coating chamber body

4. conveyorised automatic vacuum coating UV coating plant

5.dustfree automatic UV coating plant: clean class 10,000-100,000

1. it is computerised and painting process parameter can be recorded in robot;

2. this Dustless Robot Automatic Spray Coating Line for Plastic Parts is suitable for various shapes of articles;

3. PLC programing and control system is used in this Dustless Robot Automatic Spray Coating Line for Plastic Parts;

4. a multi-axis servo motor is used in this Dustless Robot Automatic Spray Coating Line for Plastic Parts so it helps to make full use of paint and to get stable coating effect;

5. it is a high automation Dustless Robot Automatic Spray Coating Line for Plastic Parts, which helps to increase production and to save area;

6. the program in this Dustless Robot Automatic Spray Coating Line for Plastic Parts can control paint spray area and flow.

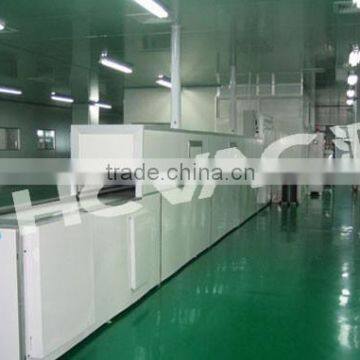

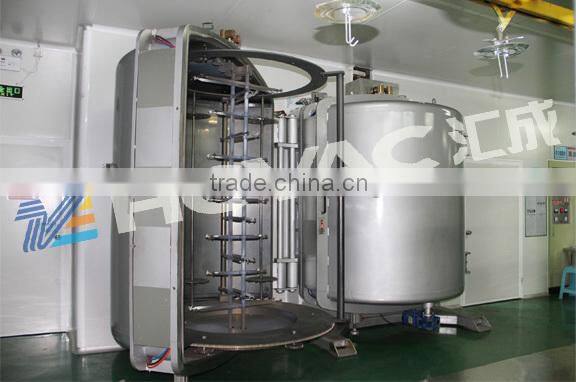

Those are the vacuum coating machine and painting line pictures:

Those are the products after UV painting and vacuum coating, can Be Plastic,glass,metal and ceramic products

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.

Easy to implement: To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
