Home > Products > Thermal Evaporation Vacuum coating machine > HCVAC Plastic Bottle Cap UV Metallization Pvd Vacuum Coating Machine,vacuum Metallizing Plant,vacuum Plating Machine

HCVAC Plastic Bottle Cap UV Metallization Pvd Vacuum Coating Machine,vacuum Metallizing Plant,vacuum Plating Machine

FOB Price

US$ 30,000 - 500,000 / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Coating Production Line
Substrate	Other, plastic	Coating	Vacuum Coating
Place of Origin	Guangdong, China	Brand Name	HCVAC
Model Number	ZZ-	Voltage	380v or customized
Power(W)	30kw	Dimension(LWH)	plastic pvd vacuum coating machine
Weight	plastic pvd vacuum coating machine	Certification	TUV, CE, SGS, ISO9001
Warranty	one year limited warranty,lifetime maintenance	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

DETAILED DESCRIPTION

The machine use Vacuum metallizing technology match with Painting line to get all kinds of color metallic finishing on Products.We can do Turnkey Project for customers including Vacuum PVD coating, UV Automatic Painting line.

Technology

The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.

Thermal Resistance Evaporation Coating Technology: Thermal vacuum deposition is one method for fabricating thin films under a high vacuum environment also addressed as "thermal evaporation method". With this method, an electron beam (e-beam) or resistive heating is usually used to evaporate the desired material inside the vacuum coating chamber, which then adheres to a substrate placed above it. This method can classified as a form of PVD, which stands for physical vapor deposition, and is suitable for fabricating high-quality thin films with thicknesses on the order of nanometers on glass, plastic, films, metals, and almost any other kind of material.

Features

Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.

Application

Applied industry: Widely used in automotive, audio and varinous small appliances, computers, clocks and watches, toys cell phones reflective Cup, cosmetics toys tableware sanitary shoe heel, ABS, PS, PP, PC, PVC, PET, nylon,metal, Boli, glass, ceramics, TPU, etc.

Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, wiredrawing,raindrop ect.

Coating color: gold, silver, red, blue, green, purple,rainbow color ect.

TECHNICAL DATA

Mode	ZZ-1214	ZZ-1416	ZZ-1618	ZZ-1820
Dimension (D*H)	1200*1400mm	1400*1600mm	1600*1800mm	1800*2000mm
Film type	Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc
Power source	Thermal evaporation power, ion bombard power, RF power
Vacuum chamber structure	Vertical double/single door, horizontal single door, pump system postposition
Ultimate vacuum	8.0*10-4Pa
Vacuum system	Diffusion pump +Roots pump +Mechanical pump +Holding pump
Pump time	Pump from atmosphere to 5.0*10-2,<=6 minutes
Workpiece motion mode	Public rotation/ Frequency control
Control mode	Manual/Automatic all in one mode, Touch screen + PLC
Remark	We can design the dimension of the equipment according to customer’s special technique requirement.

MACHINE PHOTOS

Stainless steel chamber:

Carbon steel chamber:

UV curing line:

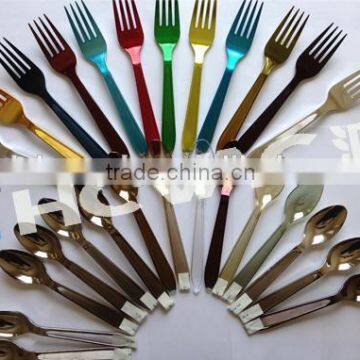

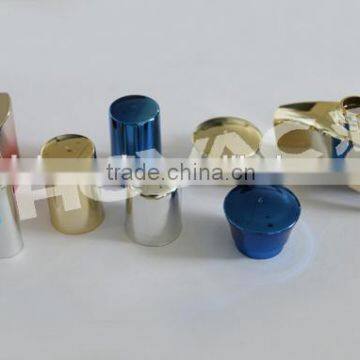

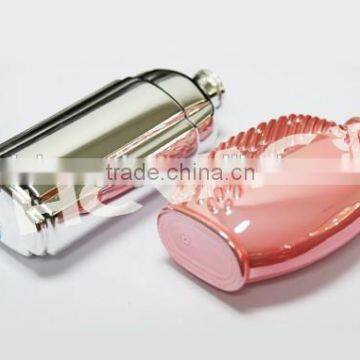

SAMPLE PHOTOS

Company Information

ABOUT HUICHENG

Dongguan Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D,
production, and marketing kinds of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.

Our Services

1.Professional sales person and technical team to lead you to invest the project with best budget.Turn-key project offering.

2.Quality control,high technology productivity to make sure the good quality machine production.

3.1 year warranty was provided since the date of delivery. In 1 year's warranty,For small problems about the machine,our profesional after-sales team will help to solve on line.For big problem,we will dispatch the engineer to your factory to solve problem.Large experienced engineer team is ready to serve all of you in the whole world.

Certifications

HUICHENG HONOR

Successful Case

PHOTO WITH CLIENTS & SUCCESSFUL CASE

More information about our vacuum coating machine,pls do not hesitate to contact:

Contact person:Mandy Liu

Phone No./whatsapp/wechat:+8613825755941

Skype:liuyingyu7

Email:mandy(at)
