Car Lamp Reflective Film Metallized Pvd Coating Equipment/car Lamp Vacuum Metallizing Plant(ZZ)
US$ 40,000 - 300,000
/ Set
1 Set(Min. Order)
- shenzhen
- T/T
You May Like
-
Car Internal and External Accessories Pvd Vacuum Coating Machine/AUTOMOTIVE Accessories Vacuum Coating System/vacuum Deposition
-
HCVAC Thermal Evaporation Vacuum Metallizing Machine,PVD Heat Resistance Aluminum Coating Machine for Plastic Decorative Coating
-
Huicheng Vacuum UV Vacuum Metallizing Coating Machine/automatic Spray UV Painting Machine/UV Vacuum Plating Machine
-
Plastic Resistance Thermal Evaporation Vacuum Metallizing Machine,Aluminum Evporation High Vacuum Coating Machine,PVD Machine
-
HCVAC China Supplier Auto Lamp Reflector Aluminum Film Evaporation Vacuum Coating Machine/car Lamp Aluminum Coating Machine
-
HCVAC Auto Parts/car Accessories Decorative Aluminum PVD Vacuum Coating Machine,vacuum Metallizing Plant
Product Details
| Condition | New | Type | Coating Production Line | |
| Substrate | Other, plastic,resin,wood,glass,metal | Coating | Vacuum Coating | |
| Place of Origin | Guangdong, China | Brand Name | Huicheng/HCVAC | |
| Model Number | ZZ- | Voltage | 380v or customized | |
| Power(W) | 45kw | Dimension(L*W*H) | car lamp vacuum metallizing plant | |
| Weight | car lamp vacuum metallizing plant | Certification | ISO9001,CE | |
| Warranty | one year limited warranty,lifetime maintenance | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
| DETAILED DESCRIPTION |
The machine use Vacuum metallizing technology match with Painting line to get all kinds of color metallic finishing on Products.We can do Turnkey Project for customers including Vacuum PVD coating, UV Automatic Painting line.
| Technology |
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Thermal Resistance Evaporation Coating Technology: Thermal vacuum deposition is one method for fabricating thin films under a high vacuum environment also addressed as "thermal evaporation method". With this method, an electron beam (e-beam) or resistive heating is usually used to evaporate the desired material inside the vacuum coating chamber, which then adheres to a substrate placed above it. This method can classified as a form of PVD, which stands for physical vapor deposition, and is suitable for fabricating high-quality thin films with thicknesses on the order of nanometers on glass, plastic, films, metals, and almost any other kind of material.
| Features |
Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
| Application | |
Applied industry: Widely used in automotive, audio and varinous small appliances, computers, clocks and watches, toys cell phones reflective Cup, cosmetics toys tableware sanitary shoe heel, ABS, PS, PP, PC, PVC, PET, nylon,metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, wiredrawing,raindrop ect.
Coating color: gold, silver, red, blue, green, purple,rainbow color ect.
| TECHNICAL DATA |
| Mode | ZZ-1214 | ZZ-1416 | ZZ-1618 | ZZ-1820 |
| Dimension (D*H) | 1200*1400mm | 1400*1600mm | 1600*1800mm | 1800*2000mm |
| Film type | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc | |||
| Power source | Thermal evaporation power, ion bombard power, RF power | |||
| Vacuum chamber structure | Vertical double/single door, horizontal single door, pump system postposition | |||
| Ultimate vacuum | 8.0*10-4Pa | |||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump | |||
| Pump time | Pump from atmosphere to 5.0*10-2,<=6 minutes | |||
| Workpiece motion mode | Public rotation/ Frequency control | |||
| Control mode | Manual/Automatic all in one mode, Touch screen + PLC | |||
| Remark | We can design the dimension of the equipment according to customer’s special technique requirement. | |||
| MACHINE PHOTOS |
Stainless steel chamber:
Carbon steel chamber:
UV curing line:

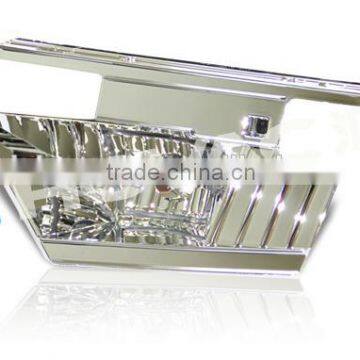

| SAMPLE PHOTOS | |
Company Information
| ABOUT HUICHENG |
Dongguan Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D,
production, and marketing kinds of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.
production, and marketing kinds of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Our Services
1.Professional sales person and technical team to lead you to invest the project with best budget.Turn-key project offering.
2.Quality control,high technology productivity to make sure the good quality machine production.
3.1 year warranty was provided since the date of delivery. In 1 year's warranty,For small problems about the machine,our profesional after-sales team will help to solve on line.For big problem,we will dispatch the engineer to your factory to solve problem.Large experienced engineer team is ready to serve all of you in the whole world.
Certifications
| HUICHENG HONOR |
Successful Case
| PHOTO WITH CLIENTS & SUCCESSFUL CASE |
More information about our vacuum coating machine,pls do not hesitate to contact:
Contact person:Mandy Liu
Phone No./whatsapp/wechat:+8613825755941
Skype:liuyingyu7
Email:mandy(at)
