Stainless Steel Sheet/ Pipe and Stair Handle PVD Plating Machine
- SHENZHEN
- T/T Credit Card
You May Like
-
Titanium Nitride Gold/blue/black/colorful Stainless Steel Sheet/pipe PVD Coating Machine
-
Stainless Steel Sheet Coating Machine From Dongguan Huicheng
-
Stainless Steel Gold Color PVD Coating Machine(LH-series)
-
Golden Color Stainless Steel Sheet PVD Coating Machine
-
Large PVD Ti Gold Coating Machine for Stainless Steel Sheet/PVD Vacuum Coating Machine and PVD Coating Service
-
Stainless Steel Plate Titanium Coating Machine/steel Plate TiN Coating Machine
Product Details
| Condition | New | Type | Coating Production Line | |
| Substrate | Steel | Coating | Vacuum Coating | |
| Place of Origin | Guangdong, China | Brand Name | HUICHENG | |
| Model Number | LH-series for Stainless Steel Sheet/ pipe and stair handle PVD plating | Voltage | 380V for Stainless Steel Sheet/ pipe and stair handle PVD plating mach | |
| Power(W) | 65-80KW/H | Dimension(L*W*H) | customized | |
| Weight | 18000KG | Certification | ISO9001,CE,TUV, SGS | |
| Warranty | 1year warranty, lifetime maintanence | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Stainless Steel Sheet/ pipe and stair handle PVD plating machine is an ion coating machine of efficiency, harmless and pollution-free.
It is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film,
Technical parameter of Stainless Steel Sheet/ pipe and stair handle PVD plating machine:
Mode Dimension | LH-900 | LH-1100 | LH-1250 |
900*1000mm | 1100*1000mm | 1250*1500mm | |
Coating mode and main confirguration |
Eight multi-arc targets |
Ten multi-arc targets |
Twelve multi-arc targets |
Power source | Electric-arc power, Filament power, | ||
Process gas control | Mass flowmeter + Electromagnetic ceramic valve | ||

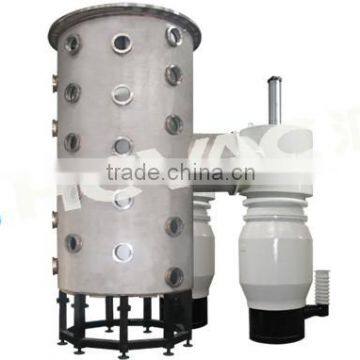

Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling | ||
Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa) | ||
Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. | ||
Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | ||
Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
Remark | We can design the dimension of the equipment according to customers special technique requirement. | ||
We can make design the dimension of the vacuum chamber according to your requirement. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
For more information about machine, please contact Kelly who will be glad to explain more details to you.
Mobile phone No.: 008613650364433
Wechat: 008613650364433
What's app: 008613650364433
Skype: kellykelly5291
QQ: 545605015
