Home > Products > butterfly valve > Hydraulic Wafer Type Concentric Butterfly Valves
Hydraulic Wafer Type Concentric Butterfly Valves
- Shanghai
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Other, cast steel,cast iorn,bronze,ss316 | Temperature of Media | Normal Temperature | |
| Media | Other, Fresh water,sea water,air,corrosive meduim or high temperature | Place of Origin | Jiangsu, China | |
| Model Number | Q/SF0306ES | Brand Name | SF |
Product Description
Specifications
Hydraulic Wafer Type Concentric Butterfly Valves1.Material:Cast steel,cast iron,bronze
2.Size:DN50---DN600
3.Pressure:1.6MPa
Hydraulic Wafer Type Concentric Butterfly Valve
1.Material:Cast steel,cast iron,bronze
2.Size:DN50---DN600
3.Pressure:1.6MPa.
4.CE,BV,CCS,ABS,ISO,certification
5.OEM & ODM.

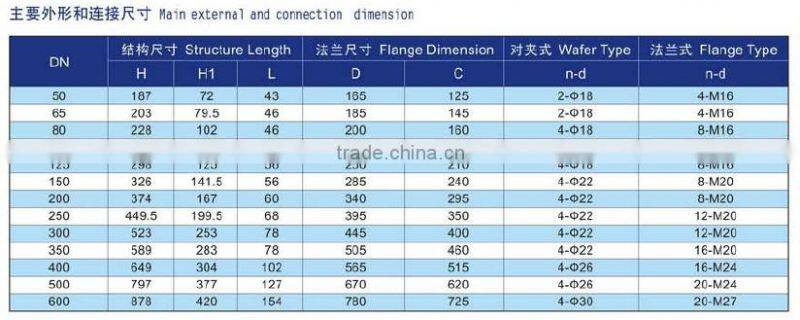

| Standard | JIS,DIN,ANSI,API,GB |
| Size | DN50---DN600 |
| Pressure | 1.6MPa |
| Actuator Pressure | 6.0MPa (Maximum 25.0MPa ) |
| Actuator Body | S45C,C45,080M46,1045 |
| Material | cast steel,stainless steel,bronze,cast iron |
| Body | WCB,Stainless steel,cast iron,Bronze |
| Disc | Bronze/Stainless steel |
| Stem | SS316,Bronze,Cast steel |
| Seal ring | NBR/FPM |
| Operation Model | Electric,Hydraulic,Handle |
| Application | Marine/Ship/Industrial/ETC |
| Packing | Plywood box or according to specific customer needing .suitable for long-time sea shipment |
| Delivery | 15days after order, depend on the quantity of the products |

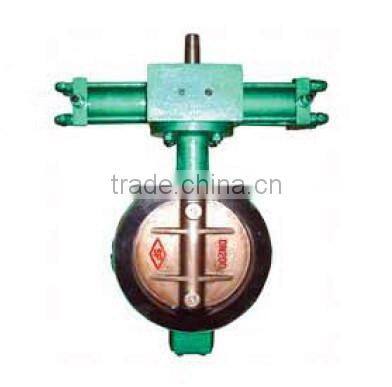

Product Photo Show
Our factory advantages:
1.Rich experience more than 10 years in this line.
2.Advanced equipments
3.Complete quality control system.
4.Direct factory & Good service and best price.
Detail
Our service:
1, Sample available.
2, Customer design OK.
3,12 months warranty
Work Shop
Application
Why choose us?
1) World Class Valves: We provide our customers with world class quality.
2) Non Standard Valves: Any requirement for Non-Standard valves is fulfilled.
3) Products with Excellent Quality: Our company provide 100% quality products it provides with cenuine intent.
4) After Sales Service and Technical Assistance: Our company provides after sales service and technical assistance as the customers requirements.
5) Fast Delivery: Our company provides the just-in-time delivery.
Package
Office
We warmly welcome friends and customers to visit our factory and cooperate with us to achieve further development.
