Calcium Silicate Insulation Pipe Board Klin Industry Price Factory

Specifications

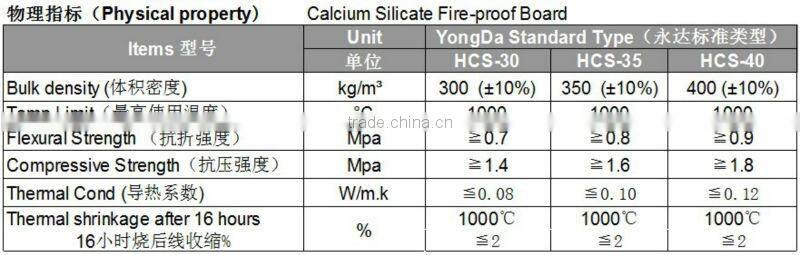

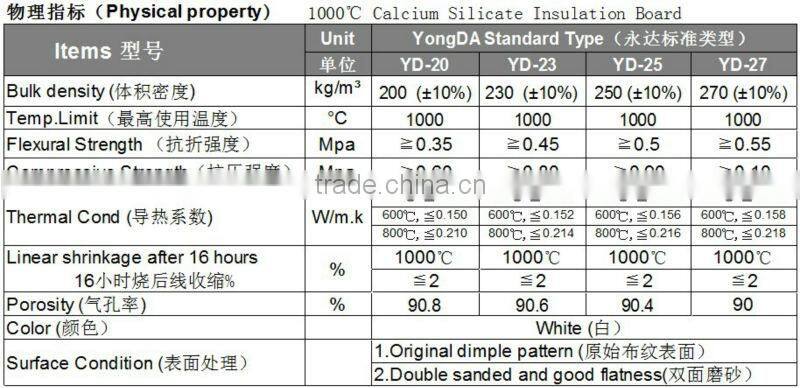

Specifications:

Density:200-1000kgs/m3

Temp.Limit:1000 centi-degree

Specification:Maxi 1220*1220*150mm

Application:Industrial furnace ;Kiln

Non-ferrous industry/molten aluminum etc.

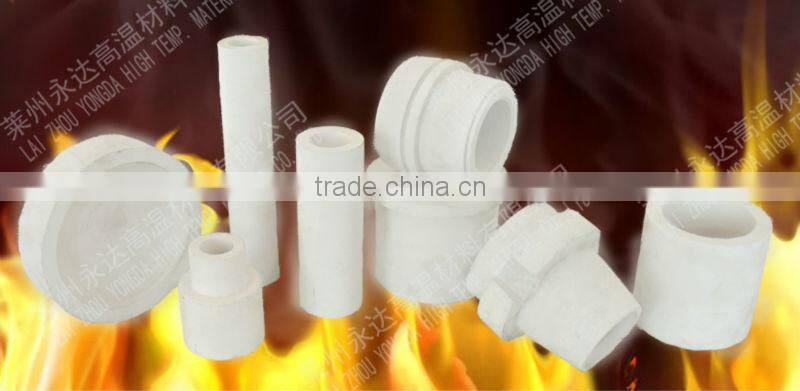

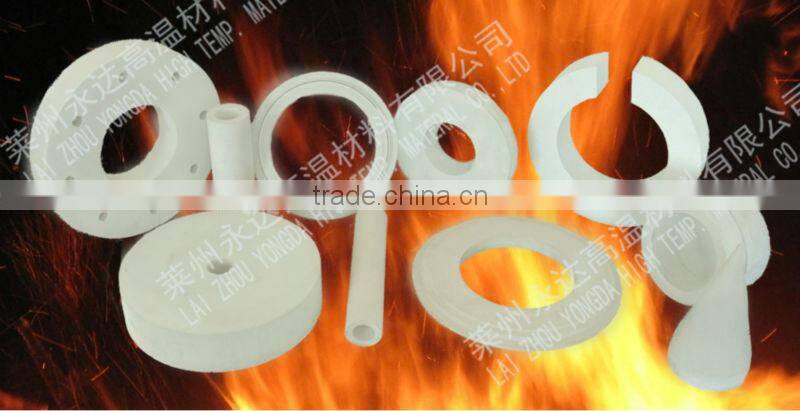

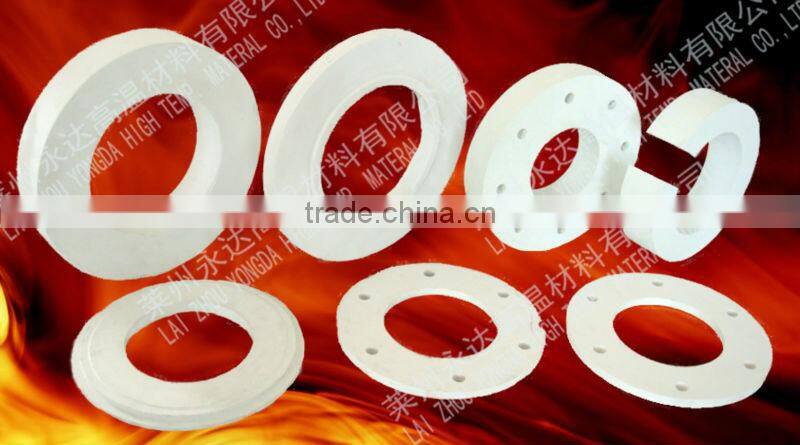

Calcium silicate fire-proof board / pipe/ brick / materials for aluminium industry.

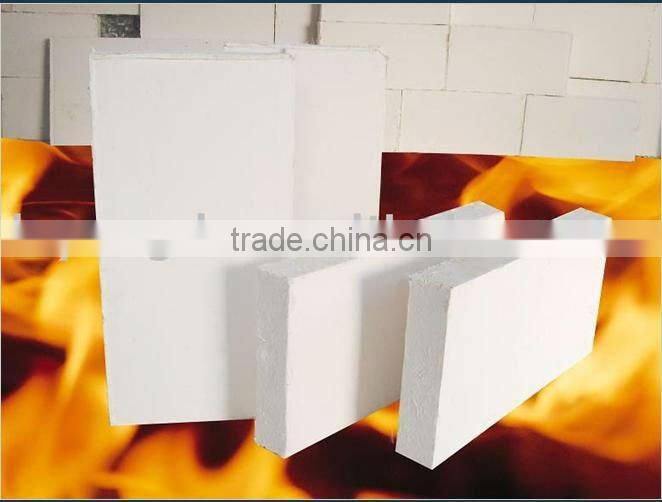

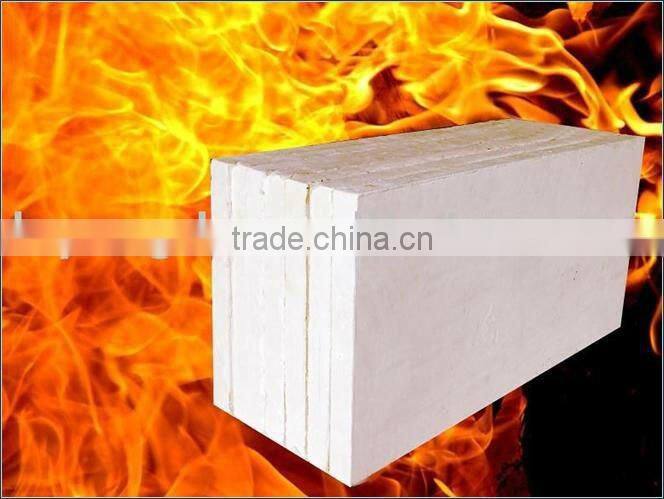

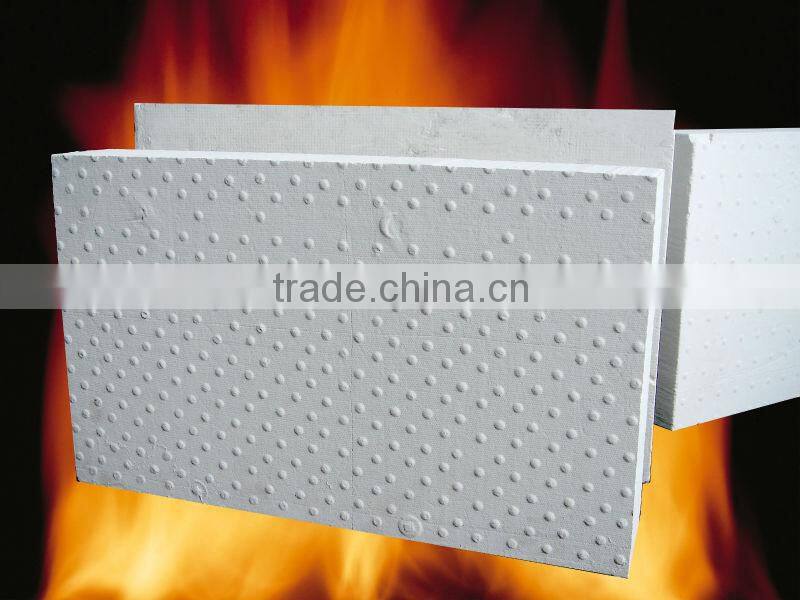

The main constituents of calcium silicate insulation board is Xonotlite and reinforced galss fibre,no asbestos . It is a kind of high efficient energy-saving material with temperature limited 1050 cent-degree.Characterised by low bulk density,high specific strength, superior heat resistance,outstanding thermal insulation,excellent durability, chemical corrosion resistance, easy to be cut by saw and easy installation, calcium silicate can be widely used for the insulation of industrial kiln.

 1100°C High denstiy calcium silicate board pipe/ brick / fire-proof doors.

With density range 800--1000kgs/m3 ,high density calcium silicate insulation board is developed for the non-ferrous industry used for feeding ,castin g and molding of molten aluminum and other non-ferrous metals, also can be used for clamping fixture of glass industry . In addition to its insulation, its characteristic of non-stick aluminum exerts a large. Superior strength and good processability makes it the preferred material for precision CNC machined parts and complex components. There are two types, namely, glass fiber reinforced and carbon fiber reinforced.

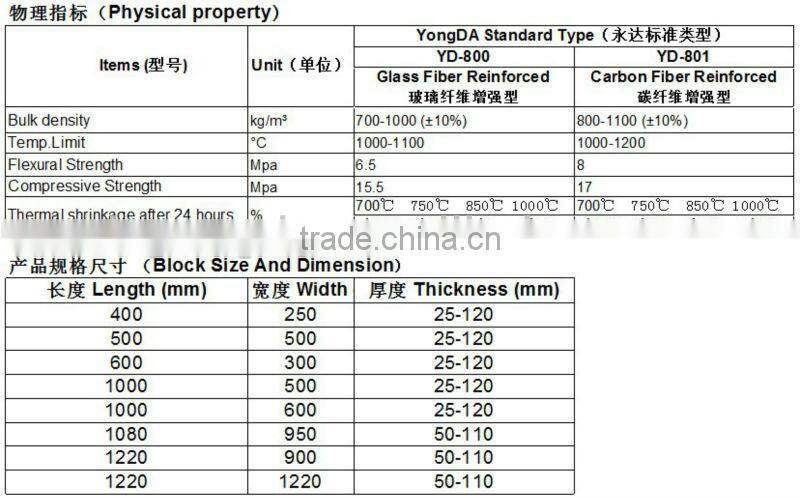

TwoTypes:

YD-800 Glass-fibre Reinforced Calcium Silicate Insulation Board

YD-801 Carbon Fibre Reinforced Calcium Silicate Insulaton Board

Areas of application:

A. Cement industry: preheaters and cyclone separators, decomposition kiln,tertiary air duct and cooler .

B. Nonferrous metallurygical industry: aluminum power calciner and electrolysis groove.

C. Petrochemical industry: Splitting furnace,catalytic cracking furnace,petroleumpipeline,underground heat-flooding.

D.Metallurgical industry(steel plant): hot-rolling heat furnace,cool-rolling mill set,RH vacuum degassing furnace , smelters,hot deformation and heat treatment plants.

E. Power plant:preheat stove ,pipe.

F.Glass industry:melting furnace and recuperator,annealing furnace and cooling channels.

<
