Home > Products > Wellhead equipments > Cameron FC Hydraulic gate valve API 6A

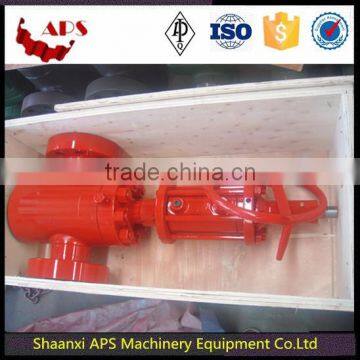

Cameron FC Hydraulic gate valve API 6A
- 100 Set / Sets per Month
- Tianjin
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Other, 150lbs-2500lbs | Power | Other, Drive by medium | |
| Material | Casting | Temperature of Media | Other, -29 Deg. C ~ 200 Deg. C | |
| Media | Other, Crude Oil, Natural Gas, etc | Port Size | 2" - 56 " | |
| Model Number | Gate Valve | Brand Name | APS | |
| Application | General |
Product Description
Specification:
Working Pressure: 2000psi~20000psi
Nominal Bore: 1.13/16″~7.1/16″ (46mm~180mm)
Working Medium: oil, natural gas, mud and gas containing H2S and CO2
Working Temperature: -46℃~121℃(Class LU)
Material Class: AA, BB, CC, DD, EE, FF, HH
Specification level: PSL1~4
Performance Requirement: PR1~2
Product Description
API 6A FC gate valves are handwheel operated valves. The gate of the MODEL FC
valve is a one piece slab gate that uses two floating seats to generate a highly
reliable seal. The slab gate eliminates the chance of trapping pressure within the
body cavity which can cause pressure locking.
Size (inches) | Working Pressure (PSI) | |||
1 13/16 |
|
| 10000 | 15000 |
2 1/16 |
| 5000 | 10000 | 15000 |
2 9/16 |
| 5000 | 10000 | 15000 |
3 1/8 | 3000 | 5000 |
|
|
3 1/16 |
|
| 10000 | 15000 |
4 1/16 | 3000 | 5000 | 10000 |
|
The main characteristic:
♦Forged body & bonnet
♦Low operation torque
♦Metal-to-metal body/bonnet seal
♦Metal-to-metal backseal seal can be energized
regardless of gate position
♦Lubrication fittings for easy maintenance
♦Gate guides retain body lubricants and protect gate
♦Manual or actuated operation
♦Simple design assures low cost
♦Flanged or screwed outlets
