API 6A X-mas Tree/tubing Hanger/oil and Gas Industry Wellhead Casing Spool/
- Tianjin Shanghai China
- T/T
You May Like
-
API 6A Plug Valve/Union Connection/cock Valve
-
APS Double Ram Preventer,cameron Double Ram BOP,annular Blowout Preventer/for Oilfield Drilling Usage
-
APS 11" 5000psi API 16A Single Ram BOP for Oilfield Drilling
-
API High Pressure Swivel Joint for Tube Pipe/Elbow and Union in Oil and Gas
-
API Standard 5000psi Annular BOP Cameron BOP/Hydril BOP
-
API Standard 13-5/8" 5000psi Annular BOP
Product Details
| Brand Name | APS | Model Number | API 6A | |
| Type | Other, Wellhead | Machine Type | Drilling Equipment | |
| Certification | API | Material | Other, AA,BB,CC,DD,EE,FF,HH | |
| Processing Type | Casting | Use | Well Drilling |
Product Description

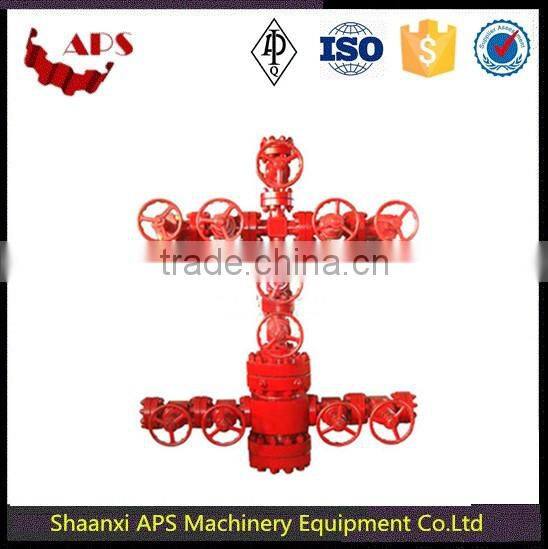

API 6A x-mas tree/tubing hanger/oil and gas industry wellhead casing spool/
Main Description:
We could supply all models of tubing head,carry out API 6A standard.
Our products could match the following brand :
FMC , CAMERON , CONTROL FLOW , DKG , DRILLQUIP , CE , VECTOGREY , WEATHERFORD , WEIRSEABOARD
WOOD GROUP , WOM , STREAM FLO . EXPRO, MI SWACO , T3
The connection size and pressure is following :
Top flange | Top flange | Top flange | Top flange |
11"×2000psi (279.4mm×14MPa) | 11"×2000psi (279.4mm×14MPa) | 11"×5000psi (279.4mm×35MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
11"×2000psi (279.4mm×14MPa) | 13-5/8"×2000psi (346.1mm×14MPa) | 11"×10000psi (279.4mm×70MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
11"×3000psi (279.4mm×21MPa) | 11"×3000psi (279.4mm×21MPa) | 11"×15000psi (279.4mm×105MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
11"×3000psi (279.4mm×21MPa) | 13-5/8"×2000psi (346.1mm×14MPa) | 13-5/8"×5000psi (346.1mm×35MPa) | 21-1/14"×2000psi (539.8mm×14MPa) |
11"×3000psi (279.4mm×21MPa) | 13-5/8"×3000psi (346.1mm×21MPa) | 13-5/8"×10000psi (346.1mm×70MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
11"×5000psi (279.4mm×35MPa) | 13-5/8"×3000psi (346.1mm×21MPa) | 13-5/8"×15000psi (346.1mm×105MPa) | 13-5/8"×5000psi (346.1mm×35MPa) |
Casing Program | 20 " X13 3/8 " X9 5/8 " X 7 " or 5 1/2 " |
Flanged Outlet | PFF35/80:R35 |
PFF70/65:BX153 | |
Load Capacity | ≤ 5000KN |
Hanger Specification | 4 ", 4 1/2 ", 5 ", 5 1/2 ", 7 " |
Working Pressure | 35Mpa~70Mpa |
Performance Requirement Grade | PR1,PR2 |
Product Specification Grade | PSL1-3 |
Temperature | P·U (-29°C~121°C) |
Material Class | AA~FF |
