Brake Drums and Discs Machine T8445,T8445FCV
You May Like
Product Details
| Brand Name | APS | Model Number | T8445,T8445FCV | |
| Warranty | 1 Years |
Product Description

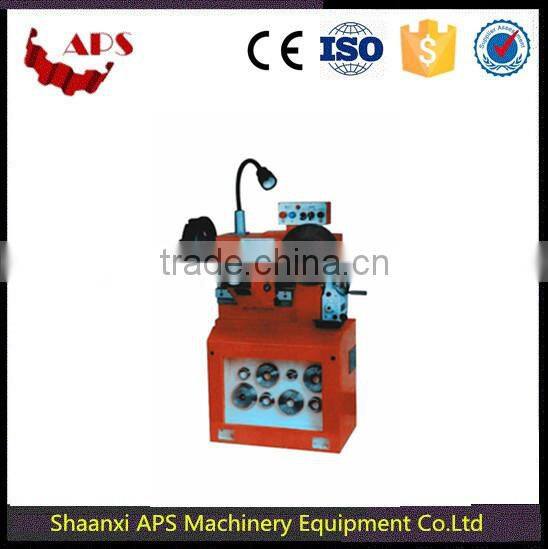

Brake Drum/Disc Cutting Machine T8445,T8445FCV
T8445FCV is equipped with power feed.

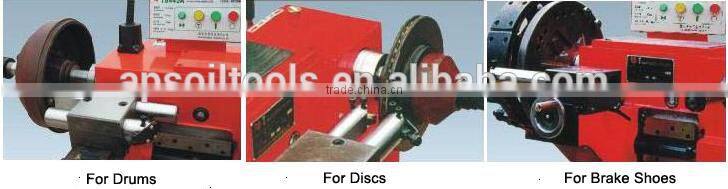

The machine is a kind of infinitely veriable speed lathe. It can fulfill the reparation of the brake drum disc and shoe of auto-mobiles from mini-car to medium heavy trucks. The unusual feature of this equipment is its twin-spindle each other perpendicular structure. The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle. This equipment has higher rigidity, accurate workpiece positioning and is easy to operate.
Model | T8445FCV | T8445 |
Drum dia. Capacity | Φ180-Φ450 mm | Φ180-Φ450 mm |
Disc dia. Capacity | ≤Φ400 mm | ≤Φ400 mm |
Spindle speed (3 steps) | 30, 50, 85 r/min | 30, 50, 85 r/min |
Toolpost travel | 170 mm | 170 mm |
Feed rate | 0-0.5 mm/min | 0.3 0.16 mm/min |
Motor | 1.1 Kw / 1400 rpm | 1.1 Kw / 1400 rpm |
Overall dimensions (L×W×H) | 820×1080×1180 mm | 720×850×1140 mm |
Packing dimensions (L× W×H) | 820×1080×1280 mm | 720×850×1240 mm |
N.W./G.W. | 320/350 kg | 360/390kg |

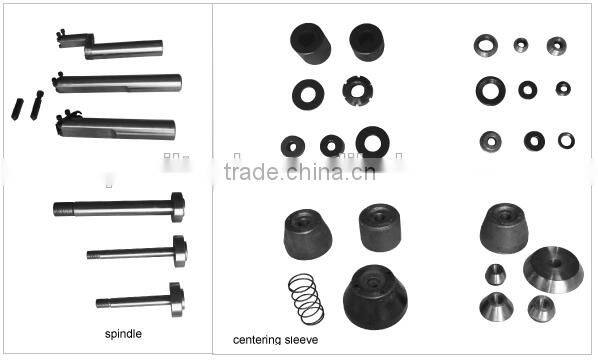

Standard Accessories
1. Cutter Bar & Boring Cutter
2. Spindle
3. Locating Sleeve
4. Centering Sleeve
