Home > Products > Ball Valves > Full bore cf8 bspt forged threaded ball valve 2pc 800lb for petroleum

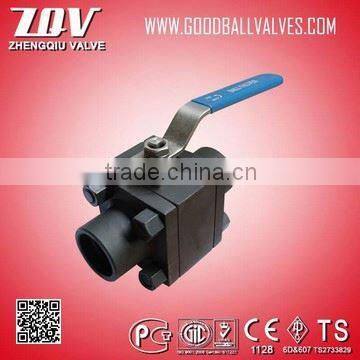

Full bore cf8 bspt forged threaded ball valve 2pc 800lb for petroleum

FOB Price

US$ 60 - 1,860 / Piece

1 Piece(Min. Order)

Port Shanghai or Ningbo
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Other, Standard, Standard	Structure	Other, Ball, Ball
Pressure	Other, High Pressure, Class150#-2500#	Power	Other, Manual, Manual
Material	Other, Forged, A105,F316,F304,LF2,LF3,F51,F55	Temperature of Media	Other, Medium Temperature, Normal Temperature
Media	Other, Oil, Water	Port Size	2" to 36"
Place of Origin	Zhejiang, China	Model Number	ZQ6F10
Brand Name	ZQV, ZQV

Product Description

Our factory cf8 bspt forged threaded ball valve 2pc 800lbamp;

Design & Testing Inte rnational Standard:

Body Design Valve Design	:3PC BALL VALVE, 2PC BALL VALVE : BS 5351 / ANSI B 16.34
Pressure Testing	: BS 6755 Part II / API 598
Face To Face	: ANSI B 16.10
Butt Weld End	: ANSI B 16.25
Socket Weld End	: ANSI B 16.11
Screwed End	: ANSI B 1.20.1(BSP/NPT)
Size	: 1/4" to 4" (DN6-DN100)
Pressure	:600-2500LB(1000PSI-6000PSI)
Material	:Carbon Steel,Duplex Steel
End	:NPT,SW,BW,BSP,BSPT

What Specifications of our Ball Valve cf8 bspt forged threaded ball valve 2pc 800lbamp; ?

Product Description

1. Product Type: ball valves, gate valve, globe valve, check valve, flat gate valve,

cryogenic valves (gate valve, globe valve, check valve, ball valve -196 °C), sanitary valves and

fittings, etc.;

2. Executive Standard: American Standard (API), German standard (DIN), International Standard

(ISO), GB (GB), British standard (BS), etc.;

3. Material: WCB (A105), LCB (LF2), C5 (F5), WC6 (F11), WC9 (F22), CF8 (F304), CF8M (F316),

4A (F51), 5A (F53), 6A (F55), CK3MCUN (F44), MONEL, INCONEL (625,825), 20 alloy,

aluminum bronze (B148 C95500, C95400), etc.;

4. Nominal diameter: 1 / 2 "--- 56" (DN15-DN1400);

5. Nominal pressure: CLASS 150---CLASS 2500 (PN16-PN420),

6. Operating temperature: -196 °C --- 650 °C;

7. Uses: petroleum, natural gas, oil refining, chemical, power plants, ships and other conditions,

Founder of the company's operating criteria: integrity first, customer-oriented.

8. Body Processing: Investment casting and Sand Casting

9. Minimum order: 10PCS

10. Delivery time: 30 days

11. Packing: Seaworthy packing (plastic bag-carton-plywood pallet)

12.Terms of shipment: FOB, CFR, CIF

13. Payment terms: T/T or Irrevocable L/C at sight

14. Market: Japan, UK, German, Holland, France, Italy, Spain, Pakistan, Brazil, UAE, Canada, Malaysia, Korea and so on

Our Main Ball Valve Products cf8 bspt forged threaded ball valve 2pc 800lbamp;

Threaded End Ball Valves 1000PSI-6000PSI	Forged Steel Ball Valves 800LB-2500LB	Oilfield Ball Valves & Threaded End Swing Check Valves 2000PSI-5000PSI

Trunnion Mounted Ball Valves 150LB-2500LB	Floating Ball Valves 150LB-2500LB	DBB ball Valve Grooved End Ball Valve Needle Valve

Our Other Valves Products

Cast Steel Gate Valves

150LB-2500LB

Cast Steel Globe Valves

150LB-2500LB

Cast Steel Check Valves 150LB-2500LB

Company Information

Why Choose us?

We Are Factory
Low MOQ: We are always ready for providing the sample and producing some small orders, in order to meet the business well.
OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.
Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
Quick Delivery: We have the large stock for some hot products.
Competitive Prices:We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.
Alibaba Assessed 4 years Gold Supplier.
Inspected by the Inspection Institution of Bureau Veritas Certification.
100% QC inspection Before Shipmeng.

How to Contact Us?

Send your Inquiry Details in the Below, Click "Send" Now!
Add My skype:Zhengqiuvalve
Add My QQ:88350442
Add Viber&WhatsApp:(0086)13736352440

...

Trunnion Ball Valve
NPS 2"~36"
ANSI CLASS 150~2500
MATERIAL: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
DESIGN STD: API 608, API 6D, BS 5351
FACE TO FACE STD: ASME B16.10, API 6D
END CONNECTION STD: ASME B16.5, ASME B16.47, ASME B16.25
TEST STD: API 598, API 6D, BS 6755

1.Anti-fire safe design.Anti-static device
2.Free leakage of body Sealed construction
3.Double block&bleed.
4.Extension stem.

1.Bow-out proof stem

For the purpose of preventing the stem from flying off resulting in abnormal rising of the inner pressure of valve,shoulder is fixed at the lower part of the stem.In addition,in order to prevent leakage resulting from burnout of packing set of the stem in a fire,thrust bearing is set at the contact position of the shoulder at lower part of the stem and valve body.Thus an inverse seal seat is formed which will prevent leakage and avoid accident.

2.Anti-fire safe design

When the trunnion ball valve be used normally,its sealed by seat and ball surface,seat retainer sealed by O-ring and body,this is soft sealed and reliable sealing.When the seat and O-ring are burnt,the seat retainer and body will be sealed by expanded graphite.Thus act anti-fire safe purpose.

3.Anti-static device

In order to prevent friction among ball,stem and PTFE that generates static electricity which may light the combustibles and explosives that cause an accident,in this ball valve,static-conduction spring is set between the stem and the ball,the stem and the body.Thus static electricity is conducted to ground and system safety is secured.

4.Free leakage of body Sealed construction

The connective position of valve body and bonnet is double sealed by gasket and O-ring,on this base,such factors as fire,high temperature,shock and uneven opening or closing of the torque all can't induce external leakage.

5.Low torque in operation

The self-lubricated bearings are installed at the friction of stem,resulting in wear resistance,fiexibility of operation and low torque.

6. Double block&bleed(DBB)

When ball is full open or close position,the transmitter substance in center cavity of body can be released by drainage and emptying devices.In addition,the over loaded pressure in the center cavity of valve can be released to low pressure end by self relief seat.

7.Emergency sealing

Compound injection holes are designed and compound injection valves are installed at locations of stem/cap and body support of side valve.When sealing of stem or seat is damaged to induce leakage,the compound can be used to do the second time sealing.A concealed check valve is installed in side of each compound injection valve to prevent compound from out flowing due to the action of transmitter substance.The top of the compound injection valve is the connector for fast connection with compound injection gun.

8.Extension stem

For the underground installed valve,the stem can be lengthened and for the convenience of operation the corresponding compound injection nozzle and drainage valve can be extended to the top of valve.

9.Automatic body cavity relief

When the body pressure going up un-normally as the unstable factor,the trunnion ball valve downstream seat will be pushed by un-normally pressure,and the release the unnormal pressure automatically,it doesn't damage to the sealing of upstream seat.

10.Various driving types

The top pad of valve designed according to ISO 5211,which is convenient for connection and exchange of various drivers.The common driving types are manual,electrical,pneumatic and pneumatic/hydraulic.

...
