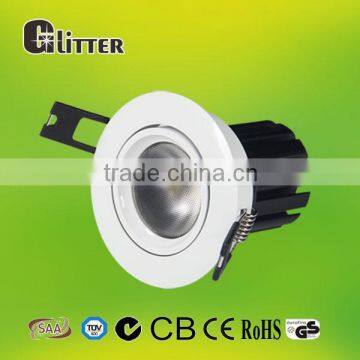

COB 10W led light ceiling fixture,cob downlight for hotel project lighting,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved

Specifications

COB 10W led light ceiling fixture,cob downlight for hotel project lighting,CRI>85ra,Pf>0.95,SAA/C-Tick/CE/CB approved

Feature:

(1)1070 AL Housing

(2) Cold Forging Heat Dissipation Tech

(3) Thermal Conductivity:2.6

(4) Unique Lens Just For Perfect Replacement Of Haloge

(5) SHARP COB

(6) Adjustable light angel

(7) Fire-Proof, Vo Class

(8) Isolated Driver, CB,GS,SAA approval



Dimension(Unit:mm)



Technical Specification:



1: Electronical Data



No.	Item		Description
1	Dimension		Ø118x100mm
2	Construction Hole Size		Ø108mm
3	Voltage		AC85-265V
4	Current Frequency		50/60 Hz
5	Power		20W
6	LED Type & Qty		1pcs COB1215
7	Beam Angle		15 25 35 60 degree
8	Color Temp.	Warm white	3000K
		Neutral white	4000K
		Cool white	5000K
9	Lumen	Warm white	>1200lm
		Neutral white	>1400lm
		Cool white	>1600lm
10	Color Rendering Index		>80
11	Material		The acrylic lens, Housing:Aluminum 1070
12	Operating temperature		-20~+50 °C
13	Humidity		20-85%
14	Certificate		CE, RoHS, SAA, TUV
15	Luminaires Class		Ⅲ



2: Light Distribution Curve & Max CD Distribution Curve







3. Illumination Diameter







Packing Information:



Item		Single Box Packing			Carton Package
	QTY/Box	Box Size	G.W.	QTY/CTN	Carton Size	G.W.	Volume Weight
DL-C3-20W	1pcs	190*160*140mm	0.68KG	12pcs	390*490*290mm	9.1kg	11kg



Safety Assurance:

Application :

Certificates:

Ageing Test(18-24 hours):

Warranty

5-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the rights for final explanation of aforesaid terms.

Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.

Service:
     1. Your inquiry related to our products or prices will be replied in 24hours.
         2. Well-trained and experienced staffs to answer all your enquires influent English.
         3. OEM & ODM are welcomed, OEM brand is available.
         4. Distributor ship is offered for your unique desigh and some our current models.
         5. Protection of your sales area, ideas of design and all your private information.

 About us:
      We are LED lighting factory and have 7 years experience of development and

         production, our main product are: LED Back-lit panel lights, LED Tube lights, LED downlight

       LED Emergency driver,LED Tri-proof light,LED Ceiling light etc.
