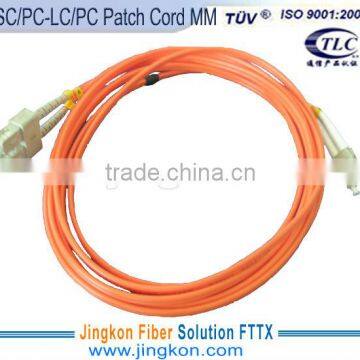

Optical Fiber Patch Cord SC/PC-LC/PC-D-MM-3.0mm/2.0mm

Specifications

Optical Fiber Patch Cord SC/PC-LC/PC-D-MM-3.0mm/2.0mm

Fiber Type :  62.5/125(OM1)  50/125 (OM2)   10GIG(OM3)

Operating Wavelength: 850 nm

Connector Type Polishing :  SC/UPC LC/UPC D4   DIN  ST/UPC MU  E2000/UPC SMA  ESCON MTRJ

Fiber Cable Jacket Type:  PVC /LSZH   Simplex/ Duplex   3.0mm/ 2.0mm/0.9mm

Insertion  loss  ≤0.20dB,

Radius of curvature       nm   10 ≤ r ≥25

Curvature eccentricity    um   <50

Fiber core  undercut     nm   <50

Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion

Repetitiveness (dB):       Insertion loss change<  0.1,Return loss change< 5

Insert & pull out    :      Max: 2KG

Tensile strength      dB   0-    10KG per minutes

Fully tested cables to ensure superior quality and durability

RoHS Compliant

Optical Fiber Patch Cord SC/PC-LC/PC-D-MM-3.0mm/2.0mm

FeaturesLow insert loss; Good repeatability; Good changeability; Good temperature stabilization.

Mechanism Features: insert and pull frequency > 1000; Changeability(db) ≤ 0.20Tensile strength < 0.1; Ascillating  test < 0.1.

Condition Features: High temperature < 0.2; Low temperature < 0.2.

Use: Applied in optical fiber communications system, fiber optic data transmission, LAN, optical fiver sensors and optical CATV.
