Home > Products > SIAMESE CABLE(HYBRID CABLE) > best selling coaxial cable RG6 with UTP cable for CATV CCTV MATVmultimedia Ethernet satellite system with CE RoHS approved linan
best selling coaxial cable RG6 with UTP cable for CATV CCTV MATVmultimedia Ethernet satellite system with CE RoHS approved linan
- 5000 Kilometer / Kilometers per Month
- Ningbo or Shanghai
- T/T
You May Like
-
RG6 coaxial cable+UTP for Surveillance Camera and CATV CCTV Ethernet satellite system
-
coaxial cable RG6 + UTP cable( CATV CCTV MATV multimedia Ethernet satellite system) with CE RoHS approved
-
coaxial cable RG59+2power cable Siamese cable for CCTV camera 75ohms security cable copper wire spool with CE RoHS approved
-
rg6 with power cable coaxial cable with 1.02BC/4.57FPE/6.8PVC for CATV CCTV MATVmultimedia Ethernet satellite system
-
CCTV Camera cable RG59 coaxial cable with power cable
-
High quality RG59B/U+2 Power composite coaxial cable for CCTV system
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Luhua | |
| Model Number | RG6 with UTP Twisted Pairs | Type | Coaxial | |
| Number of Conductors | 8 |
Product Description

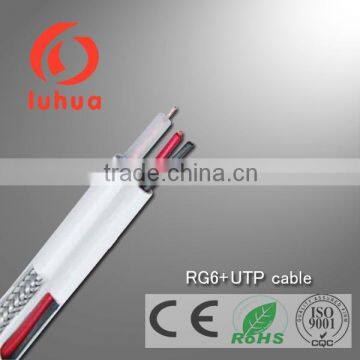

RG6 Cable with UTP CAT5e Cable for CCTV
Purpose: CCTV ,CATV, Networks, Television, SAT TV and other.
Name
| RG6 60C/2UTP white
|
Center conductor
| 1,02mm BC
|
Dielectric
| 4,57mm FPE
|
Shielding foil
| BC
|
Outer conductor
| 64x0,16mm BC
|
Jacket
| 6,80mm PVC
|
Weight
| 47,5kg/km
|
Inner conductor DC resistance
| 22Ω/km
|
Outer conductor DC resistance
| 15Ω/km
|
Capacitance
| 52pF/m
|
Impedance
| 75±3Ω
|
Screening efficiency
| >85dB
|
Min. bending radius
| 5 x diameter of cable
|
Velocity ratio
| 0,85
|
CAT5/UTP
| 4x2x0,5mm
|
| |
Attenuation
| dB/100m
|
5MHz
| 1.87
|
50MHz
| 4.74
|
100Mhz
| 6.81
|
200MHz
| 9.63
|
450Mhz
| 13.95
|
860MHz
| 19.91
|
1000MHz
| 21.62 |
Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang , China, which is a capable enterprise with more than15 years experience both in the production and the management system.
We have the most advanced testing equipment, and we have got some authority certificate of this field, such as the ISO-9001, CE, ROSHS, all of these contribute to insure that we can provide the products with high quality. Our main products contains Coaxial cable, TV cable, Telecommunication cable, RF cable and Video cable, which has been widely used in the supervision system. According to their characteristics, they also can be divided into 2 types:1)RG59,RG6,RG7,RG11, 75 Ohm Coaxial Cable with Solid Polyethylene Insulation ,which is also named Vedio. cable;2)RG59,RG6,RG7,RG11, 75 Ohms Coaxial Cable with Gas-injected Foam Polyethylene Insulation, which is also named RF cable.
As the blueprint made by our company, we are going to enlarge our business on the existing market. Although the foreign trade is not prosperous as 10 years ago, we still attach great importance to the global market.
1. Your inquiry will be replied in 24hours.
2. 15 years Coaxial Cable's experience,can become your professional purchasing partner.
3. OEM&ODM, any your customized cables we can help you to design and put into product .
4. Sample you need so that to test our company 's ability, we are so glad to free offer it.
5. Protection of your sales area, ideas of design and all your private information is our duty.
