Home > Products > INTERSIL > INTERSIL ISL6622CRZ ISL6622 622Z QFN VR11.1 Compatible Synchronous Rectified Buck MOSFET Drivers

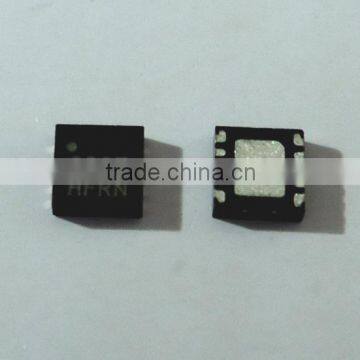

INTERSIL ISL6622CRZ ISL6622 622Z QFN VR11.1 Compatible Synchronous Rectified Buck MOSFET Drivers
US$ 0.5 - 1.5
/ Piece
1 Piece(Min. Order)
- SZ/HK
- Credit Card PayPal
You May Like
-
INTERSIL ISLISL2110AR4Z 2110AR4Z QFN 100V, 3A/4A Peak, High Frequency Half-Bridge Drivers
-
INTERSIL ISL97682 7682 QFN Compact 2-Ch LED Drivers With Phase Shift Control
-
INTERSIL ISL DEU
-
INTERSIL ISL DKB
-
INTERSIL ISL9014IRNFZ ISL9014 DKLA QFN Dual LDO With Low Noise, and High PSRR
-
INTERSIL ISL9205IRZ ISL9025 DLBA Li-ion Battery Charger
Product Details
| D/C | 10+ | Package | QFN | |
| Model Number | ISL6622CRZ | Type | Drive IC | |
| Brand Name | INTERSIL | Place of Origin | Taiwan, China |
Product Description
Product Description
Product Description
The ISL6622 is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. The advanced PWM protocol of ISL6622 is specifically designed to work with Intersil VR11.1 controllers and combined with N-Channel MOSFETs, form a complete core-voltage regulator solution for advanced microprocessors. When ISL6622 detects a PSI protocol sent by an Intersil VR11.1 controller, it activates Diode Emulation (DE) and Gate Voltage Optimization Technology (GVOT) operation; otherwise, it operates in normal Continuous Conduction Mode (CCM) PWM mode.
In the 8 Ld SOIC package, the ISL6622 drives the upper and lower gates to VCC during normal PWM mode, while the lower gate drops down to a fixed 5.75V (typically) during PSI mode. The 10 Ld DFN part offers more flexibility: the upper gate can be driven from 5V to 12V via the UVCC pin, while the lower gate has a resistor-selectable drive voltage of 5.75V, 6.75V, and 7.75V (typically) during PSI mode. This provides the flexibility necessary to optimize applications involving trade-offs between gate charge and conduction losses.
To further enhance light load efficiency, the ISL6622 enables diode emulation operation during PSI mode. This allows Discontinuous Conduction Mode (DCM) by detecting when the inductor current reaches zero and subsequently turning off the low side MOSFET to prevent it from sinking current.
An advanced adaptive shoot-through protection is integrated to prevent both the upper and lower MOSFETs from conducting simultaneously and to minimize dead time. The ISL6622 has a 20kO integrated high-side gate-to-source resistor to prevent self turn-on due to high input bus dV/dt. This driver also has an overvoltage protection feature operational while VCC is below the POR threshold: the PHASE node is connected to the gate of the low side MOSFET (LGATE) via a 10kO resistor, limiting the output voltage of the converter close to the gate threshold of the low side MOSFET, dependent on the current being shunted, which provides some protection to the load should the upper MOSFET(s) become shorted.
