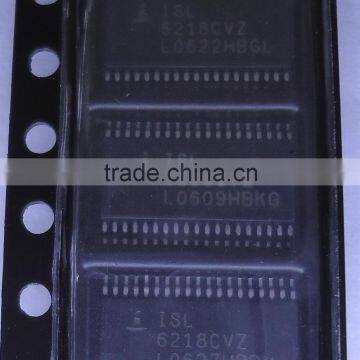

INTERSIL ISL6218CVZ ISL6218 Single Phase IMVP-IV Controller for Intel Pentium M
USD $0.5 - $2
/ Piece
1 Piece(Min.Order)
- 2000 Piece / Pieces per Month
- SZ/HK
- Credit Card PayPal
You May Like
-
ISL6223CAZ ISL6223 6223CAZ ISL62 23CAZ Mobile Microprocessor CORE Voltage Regulator Multiphase Buck PWM Controller
-
ISL6208BCRZ ISL6208B 8BC High Voltage Synchronous Rectified Buck MOSFET Drivers
-
INTERSIL ISL6225CA ISL6225 6225CA Dual Mobile-Friendly PWM Controller with DDR Memory Option
-
INTERSIL ISL6227CAZ ISL6227 6227CAZ Dual Mobile-Friendly PWM Controller with DDR Option
-
ISL6227HRZ ISL 6227HRZ QFN,Dual Mobile-Friendly PWM Controller with DDR Option
-
INTERSIL ISL6228HRTZ I62 28HRTZ ISL6228 6228HRTZ QFN High-Performance Dual-Output Buck Controller for Notebook Applications
Product Details
| D/C | 10+ | Package | QFN | |
| Model Number | ISL6218CVZ | Type | Drive IC | |
| Brand Name | INTERSIL | Place of Origin | Taiwan, China |
Product Description
Product Description
Product Description
The ISL6218 Single-Phase Buck PWM control IC, with integrated half bridge gate driver, provides a precision voltage regulation system for advanced Pentium-M microprocessors in notebook computers. This control IC also features both input voltage feed-forward and average current mode control for excellent dynamic response, "Loss-less" current sensing using MOSFET rDS(ON), and user selectable switching frequencies from 250kHz to 500kHz per phase.
The ISL6218 includes a 6-bit digital-to-analog converter (DAC) that dynamically adjusts the CORE PWM output voltage from 0.700V to 1.708V in 16mV steps, and conforms to the Intel IMVP-IV™ mobile VID specification. The ISL6218 also has logic inputs to select Active, Deep Sleep and Deeper Sleep modes of operation. A precision reference, remote sensing and proprietary architecture with integrated processor-mode compensated "Droop" provides excellent static and dynamic CORE voltage regulation.
Another feature of the ISL6218 IC controller is the internal PGOOD delay circuit that holds the PGOOD pin low for 3ms to 12ms after the VCCP and VCC_MCH regulators are within regulation. This PGOOD signal is masked during VID changes. Output overvoltage and undervoltage are monitored and result in the converter latching off and PGOOD signal being held low.
The overvoltage and undervoltage thresholds are 112% and 84% of the VID, Deep or Deeper Sleep setpoint. Overcurrent protection features a 32 cycle overcurrent shutdown. PGOOD, Overvoltage, Undervoltage and Overcurrent provide monitoring and protection for the microprocessor and power system. The ISL6218 IC is available in a 38 Ld TSSOP and 40 Ld QFN package.
Terms
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packing & Delivery
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Our Services
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
