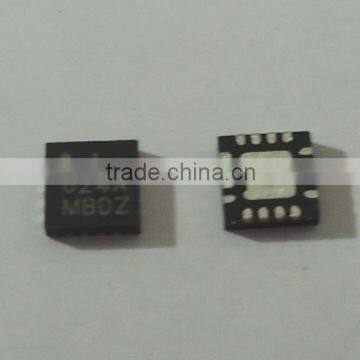

INTERSIL ISL8024A 024A QFN Compact Synchronous Buck Regulator
USD $1 - $4
/ Piece
1 Piece(Min.Order)
- 2000 Piece / Pieces per Month
- SZ/HK
- Credit Card PayPal
You May Like
-
INTERSIL 48L10 ISL48L10
-
INTERSIL 48L11 ISL48L11
-
INTERSIL ISL9106IRZ 106Z QFN Synchronous buck regulator
-
INTERSIL ISL6612CRZ ISL6612 612Z Advanced Synchronous Rectified Buck MOSFET Drivers with protect Features
-
INTERSIL ISL6622ACRZ ISL6622A 622A QFN VR11.1 Compatible Synchronous Rectified Buck MOSFET Drivers
-
INTERSIL ISL6622IRZ ISL6622 622I QFN VR11.1 Compatible Synchronous Rectified Buck MOSFET Drivers
Product Details
| D/C | 10+ | Package | QFN | |
| Model Number | ISL8024A | Type | Drive IC | |
| Brand Name | INTERSIL | Place of Origin | Taiwan, China |
Product Description
Product Description
Product Description
The ISL8023, ISL8024 are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver 3A (ISL8023) or 4A (ISL8024) of continuous output current from a 2.7V to 5.5V input supply. The devices use current mode control architecture to deliver very low duty cycle operation at high frequency with fast transient response and excellent loop stability.
The ISL8023 and ISL8024 integrate a very low On-resistance P-Channel (45m) high side FET and N-Channel (19m) low side FET to maximize efficiency and minimize external component count. The 100% duty-cycle operation allows less than 200mV dropout voltage at 4A output current. The operation frequency of the pulse-width modulator (PWM) is adjustable from 500kHz to 4MHz. The default switching frequency of 1MHz is set by connecting the FS pin high, which allows for the use of small external components.
The ISL8023, ISL8024 can be configured for discontinuous or forced continuous operation at light load. Forced continuous operation reduces noise and RF interference while discontinuous mode provides higher efficiency by reducing switching losses at light loads.
Fault protection is provided by internal hiccup mode current limiting during short circuit and overcurrent conditions. Other protection, such as overvoltage and over-temperature are also integrated into the device. A power-good output voltage monitor indicates when the output is in regulation.
The ISL8023, ISL8024 offer a 1ms Power-Good (PG) timer at power-up. When in shutdown, ISL8023, ISL8024 discharges the output capacitor through an internal soft-stop switch. Other features include internal fixed or adjustable soft-start and internal/external compensation.
The ISL8023 and ISL8024 are offered in a space saving 16 Ld 3x3 Pb-free QFN package with an exposed pad for improved thermal performance and 1mm maximum height. The complete converter occupies less than 0.22 in2 area.
Various fixed output voltages are available upon request. See the “Ordering Information” on page 4 for more details
Terms
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packing & Delivery
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Our Services
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
