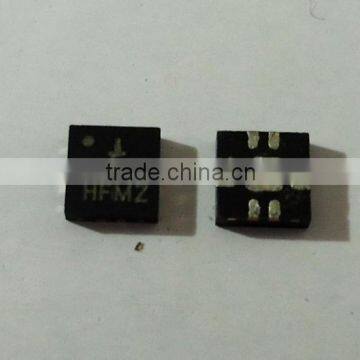

ISL6609ACRZ ISL6609A ISL09AZ 09AZ Synchronous Rectified MOSFET Driver
USD $0.5 - $1.5
/ Piece
1 Piece(Min.Order)
- 2000 Piece / Pieces per Month
- SZ/HK
- Credit Card PayPal
You May Like
-
INTERSIL ISL6609AIRZ ISL6609A 9AIZ Synchronous Rectified MOSFET Driver
-
INTERSIL ISL8011IRZ 011Z
-
INTERSIL ISL6612ACRZ 12AZ QFN Advanced Synchronous Rectified Buck MOSFET Drivers with Pre-POR OVP
-
INTERSIL 21-00080 00080
-
INTERSIL 023A ISL8023A QFN Compact Synchronous Buck Regulator
-
INTERSIL ISL8024A 024A QFN Compact Synchronous Buck Regulator
Product Details
| D/C | 10+ | Package | QFN | |
| Model Number | ISL6609ACRZ | Type | Drive IC | |
| Brand Name | INTERSIL | Place of Origin | Taiwan, China |
Product Description
Product Description
Product Description
The ISL6609, ISL6609A is a high frequency, MOSFET driver
optimized to drive two N-Channel power MOSFETs in a
synchronous-rectified buck converter topology. This driver
combined with an Intersil ISL63xx or ISL65xx multiphase
PWM controller forms a complete single-stage core-voltage
regulator solution with high efficiency performance at high
switching frequency for ad vanced microprocessors.
The IC is biased by a single low voltage supply (5V),
minimizing driver switching losses in high MOSFET gate
capacitance and high switching frequency applications.
Each driver is capable of driving a 3nF load with less than
10ns rise/fall time. Bootstrapping of the upper gate driver is
implemented via an internal low forward drop diode,
reducing implementation cost, complexity, and allowing the
use of higher performance, cost effective N-Channel
MOSFETs. Adaptive shoot-through protection is integrated
to prevent both MOSFETs from conducting simultaneously.
The ISL6609, ISL6609A features 4A typical sink current for
the lower gate driver, enhancing the lower MOSFET gate
hold-down capability during PHASE node rising edge,
preventing power loss caused by the self turn-on of the lower
MOSFET due to the high dV/dt of the switching node.
The ISL6609, ISL6609A also features an input that
recognizes a high-impedance state, working together with
Intersil multiphase PWM controllers to prevent negative
transients on the controlled output voltage when operation is
suspended. This feature eliminates the need for the schottky
diode that may be utilized in a power system to protect the
load from negative output voltage damage. In addition, the
ISL6609A's bootstrap function is designed to prevent the
BOOT capacitor from overcharging, should excessively large
negative swings occur at the transitions of the PHASE node.
