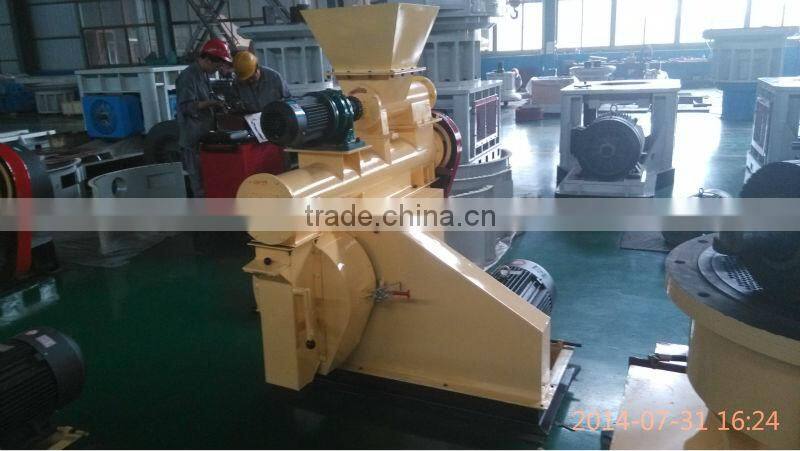

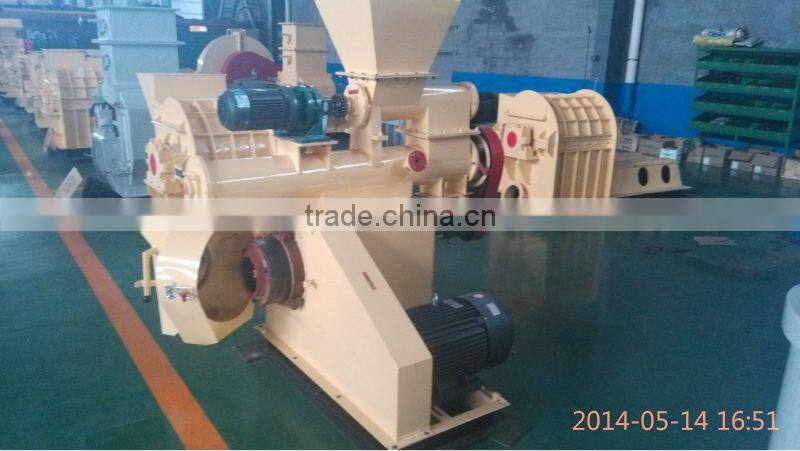

HKJ250 Animal Feed Machinery

Specifications

Introduction to YULONG brand HKJ feed pellet mill.

1. HKJ series pellet mills is mainly used for producing quality poultry and livestock feed pellet.The raw material can be powder of grain,corn,sorghum,wheat,bran,straw,alfalfa...

2. The machine has such characters as compact structure, beautiful outline, high output, low energy loss, convenient operation, and reliable capacity etc.

3. HKJ feed pellet mill can be equipped with φ1.5, φ2, φ2.5, φ3, φ3.5, φ4, φ5, φ6, φ8, φ10, φ12 diameter ring die to make different dimension pellet.. It can be chosen according to different animal.

4. The machine has adopted gradeless speed-adjusting motor to feed and installed ferromagnetic magnet system, overload protection device and a limit switch to make sure the security.

Besides, there are outer pellet-discharged structure and pressure or oil pump lubricant system.

2).Structure

1. Feeder

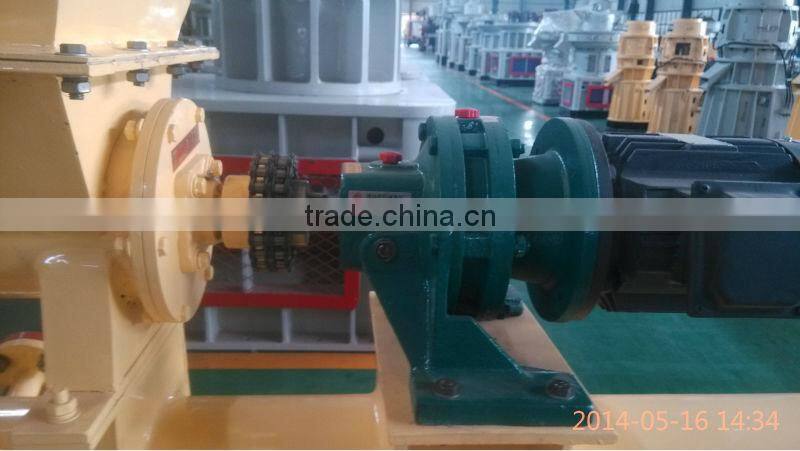

The feeder consists of speed-adjusting motor, reducer, screw hopper, and screw oar.

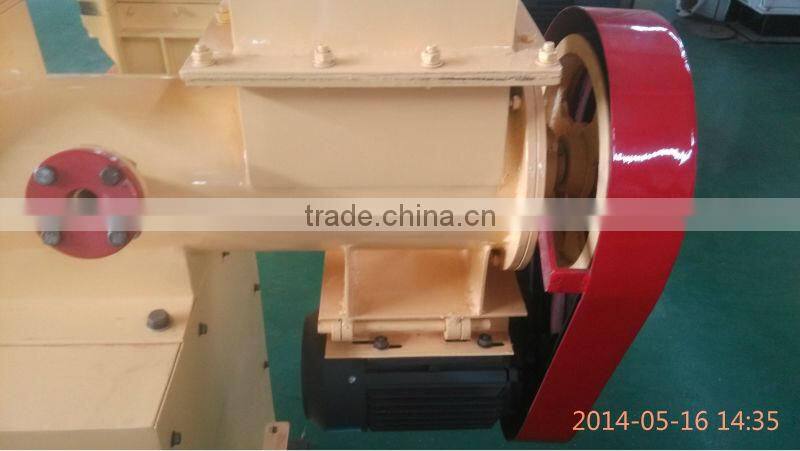

2. Conditioner

The conditioner is mainly made up of carbon steel or full stainless steel, mix oar, temperature display, motor and steam adding hole.

Its function is passing 0.1-0.4Mpa dry steam to make steam and feedstuff mix enough, to make material soft and pasted then goes into the pressing store.

The mixer hopper, mixer axis and oar are all made of carbon steel or stainless steel, so it is propitious to working in high-temperature and high-humidity environment.

(It’s no need to use conditioner when pressing organic fertilizer)

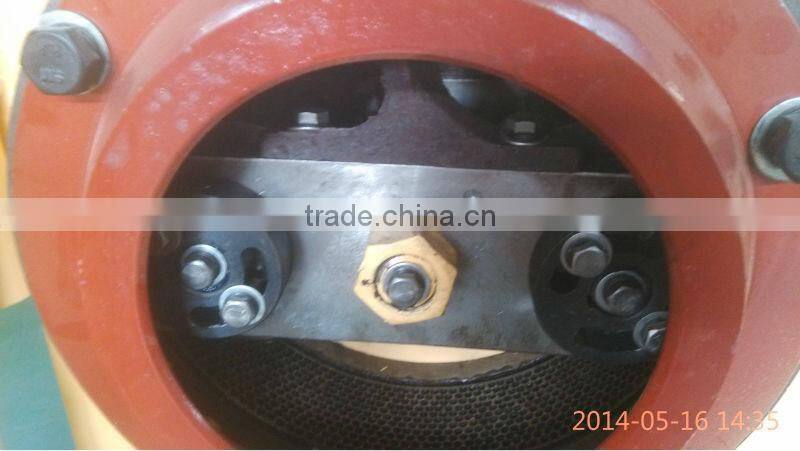

3. The pressing store

Through the cover of ring-die and feeder scraper, the powder material accumulate in the two pressing districts, belt wheel drives the ring-die rotate, the material is rolled between the ring-die and the pressed roller, two opposite rotating parts press the material gradually into the hole of ring-die, shaped in the hole and extrude out of the hole, knives by the column strip in the length you need,

finally the shaped pellets roll out of the machine.The axis of pressed roller is eccentricity running it will change the gap between die and roller, the gap-adjusting completes through running the wheel.

4. The security system

The security system is made up of overload protection, the pressing store door and cover, anti-operation trip switch and outflow from the machine.

a. Overload protection

When hard impurity into pressing district or flow of material is too big, pressure between ring-die and pressed roller is over normal, Spindle bear torque above normal and Shear stress which Pass safety pin is also above ultimate strength, then safety pin broken, making spindle spline block rotate and touch trip switch to stop.

b. Door and cover protection switch

During working, to avoid unnecessary casualties because of high-speed rotating when open the door and cover of the pressing store, then install a security trip switch on the left side of the door and cover.

When open the door and cover, the trip switch break control circuit of the pellet mill to make the pellet mill stop or can not start up to keep people safe.

Model Specification:
