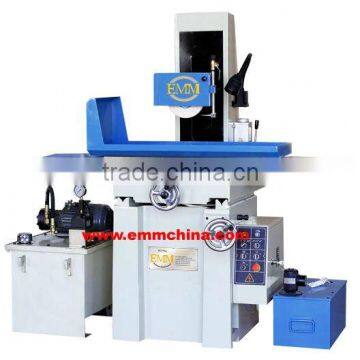

MG122 Hydraulic Surface grinding machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

All the Surface grinding series which adopt the V-type guide bring transmission by synchronous belt.

Technical data of MG122

piece to be Ground ( L×W×H)		mm	630×310×390
Max. Grinding Length		mm	630
Max. Grinding Width		mm	320
Distance From Table Surface To Spindle Center		mm	550
Slide way			V-type rail with Steel-ball
V-type rail with Steel-ball		Kg	200
Table Size (L×W)		mm	600×300
Number of T -Slot		mm×n	14×1
V-type rail with Steel-ball (Grinding Length/Width)		m/min	3-20
Cross Feed On Handwheel		mm	0.02/Graduation 2.5/revolution
Vertical Feed On Handwheel		mm	0.01/Graduation 1.25/revolution
Wheel Size (dia×width×bore )		mm	200×20×31.75
Spindle Speeds	50Hz	rpm	2850
			30-6000
Totale Power		Kw	2.5
Spindle Motor		Kw	2.2
Working Pressure		Mpa	3
Max.Capacity		L/min	20
Minimum Of Numerical		L	80
Surface Roughness		μm	Ra0.63
Paraller Level		mm	300:0.005
Machine Size (L×W×H)		mm	1900×1530×1830
Packing Size (L×W×H)		mm	1980×1530×2030
Gross,Net		T	1.1,1.2
