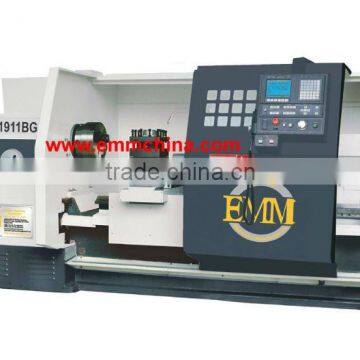

CH1911B cnc horizontal lathe

FOB Price

USD $30,000 - $40,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	910mm	Place of Origin	Jiangsu, China
Brand Name	EMM	Model Number	GH1911B
Voltage	380V	Power(W)	15KW
Dimension(LWH)	420020001930MM	Weight	6600KG
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

CH1911B cnc horizontal lathe
It is suitable for turning cylindrical and taper faces, boring, grooving and cutting threads.

CH1911B cnc horizontal lathe

Features:

1-This machine is a CNC lathe controlled by a microcomputer and driven by step motors. It is suitable for turning cylindrical and taper faces, boring, grooving and cutting threads (including taper threads).

2-The machine adopts ISO International Code, Keyboard Manual Date input, and it is also provided with program of power cut-off protection and the functions of automatic diagnosis and with RS232 interface.

3-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
Either vertical or horizontal 4 station or 6 station tool post or gang tools can be selected. The post is located on precision contrate gears with a high repeated positioning accuracy.
Hydraulic chuck, manual chuck, manual tailstock and hydraulic tailstock are available for your choice.

4-Infinitely variable speed change for spindle. The spindle bore is 104mm.The spindle system is high in the rigidity and accurancy.

Specification:

Item	Unit	CH1911B
Max. swing over bed	mm	φ910
Max. swing over carriage	mm	φ530
Width of bed	mm	600
Max. work piece length	mm	1500
Max. turning length	mm	1350
Max. weight between center	kg	2000
Spindle nose		D11
Spindle bore	mm	φ104
Cone hole diameter and taper		φ120 1:20
Range of spindle speed	r/min	3-15/13-55/45-200/155-800
Steps of spindle speed(Manual)		4
Rapid feed for Longitudinal	m/min	12
Rapid feed for cross	m/min	10
Max. travel of cross	mm	520
Min. input	mm	0.001
Tool post stations		4ways
Tool cross section	mm	40*40
External diameter	mm	φ100
Taper of bore		MT NO.5
Max. Traverse	mm	250
X/Z motor torque	nm	21/33
Main motor power	kw	15
Cooling pump power	w	90
Overall dimensions(LWH)	mm	420020001930
Net weight	kg	6600
