Full Automatic Rubber Powder Making Machine/waste Tire Recycling

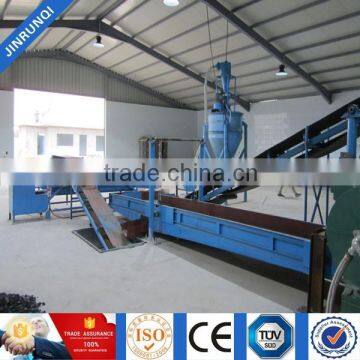

semi automatic waste tyre recycling machine

 Step one:

cut the waste tyre into 3-5CM glue pieces.

Waste tire pretreating system includes Ring cutter, Loop machine, strip cutter and block cutter.

1-1. Ring cutter 1 set

 Function: whole tire cutting into tire crown, the side of the tire and inner circle

1-2. Loop machine 1 set

 Function: tires circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation

1-3.Strip cutter 1 set

Function: various tire, glue, glue board piece cut into long strip

1-4. Block cutter 1 set

 Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.

Step two:

rubber powder processing

Rubber powder treatment system includes rubber crusher, Main conveyor, Small conveyor, Double-deck magnetic separator, Single-deck Magnetic, Main vibrating sieve, Small vibrating sieve and Fiber Processing Equipment.

1-5.Rubber crusher 1 set

Main type if the rubber crusher: XKP-400,XKP-450,XKP-560

 1-6. Big conveyor equipment

To conveyor the rubber block into crusher.

motor power:2.2kw

The length of conveyor: 8000mm

The width of belt: 550mm

speed:40m/min

1-7. Small conveyor equipment:

Motor power:1.1kw           The length of conveyor: 3m

The width of belt: 400mm       Speed: 30m/min

1-8. Big Magnet separator:

Purpose: separate the steel small block from the rubber powder.

Motor power: 1.1kw           Intensity of magnetic field: 60

The width of belt: 400mm    Speed: 30m/min

Magnetic roll: 2 sets (Permanent magnetic)

1-9.Small magnetic separator :

Intensity of magnetic field: 60

Motor power:1.1kw    The width of belt: 400mm

Speed:30m/min        Magnetic roll: 1 set (Permanent magnetic)

1-10.Fiber separator:

The machine adopts airflow separation principal,  It is able to efficiently separate minor fiber from the rubber granules.

Of course, If you only have steel tires,  So You will not need to buy this machine, because steel tire have not nylon fiber

...
