Tyre Inner Tubes Making Machine Certificated By Ce Sgs Iso

FOB Price

US$ 15,000 - 35,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China
Brand Name	Jinrunqi	Model Number	LLY-B950x1000
Voltage	380V	Power(W)	Y180L-4-22
Dimension(LWH)	customize	Weight	11500
Certification	ISO CE TUV	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Add:Wangtai industrial park,Huangdao district,Qingdao,China

Company URL: /en/

Product type	LLY-B950x1000	LLY-B600x700
Applicable types of tyres	Motorcycle tyres	Motorcycle tyres
Specification	8″-21″	4”-12”
No. of molds	2-4	2-4
Total pressure (each mold) (Mpa)	100	60
Hydraulic system pressure setting (Mpa)	≤21	≤21
Hydraulic working pressure setting (Mpa)	≤19.5	≤19.5
Dia. of hot plate (mm)	950	650
Inner dia. of insulation cover (mm)	Φ975	Φ700
Max. clearance between plates (mm)	1000	1000
Applicable mold height (mm)	120-300	120-300
Max. thickness of green tyre (mm)	450	450
Demolding force (k)	750	750
Max. height of the top tire (mm)	200	200
Open (close) mold speed (mm/s)	60	60
Hot plate heating steam pressure (Mpa)	Max.1.0	Max.1.0
Inner pressure steam or compressed air pressure(Mpa)	1.5-2.3	1.5-2.3
Shaping steam or compressed air pressure (Mpa)	0.1-0.2	0.1-0.2
Water (gas) cylinder use pressure (Mpa)	1.5-2	1.5-2
Controlling use compressed air pressure (Mpa)	0.35	0.35
Vacuum (Mpa)	0.013-0.026	0.013-0.026
Hydraulic oil	46#anti-wear hydraulic oil	46#anti-wear hydraulic oil
Pump motor (kw)	Y180L-4-22	Y180L-4-22
Total weight (kg)	11500	9500

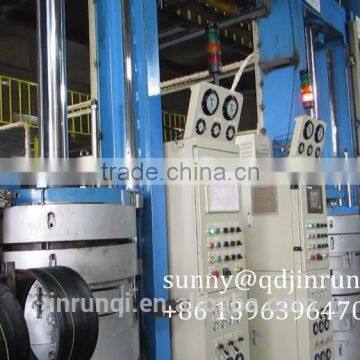

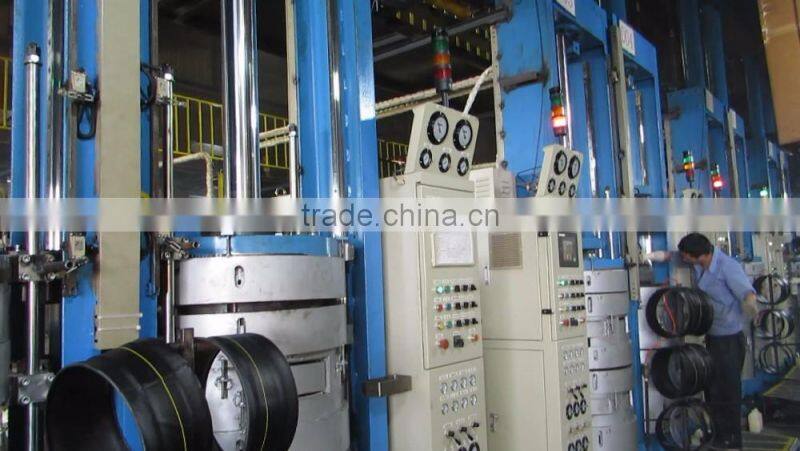

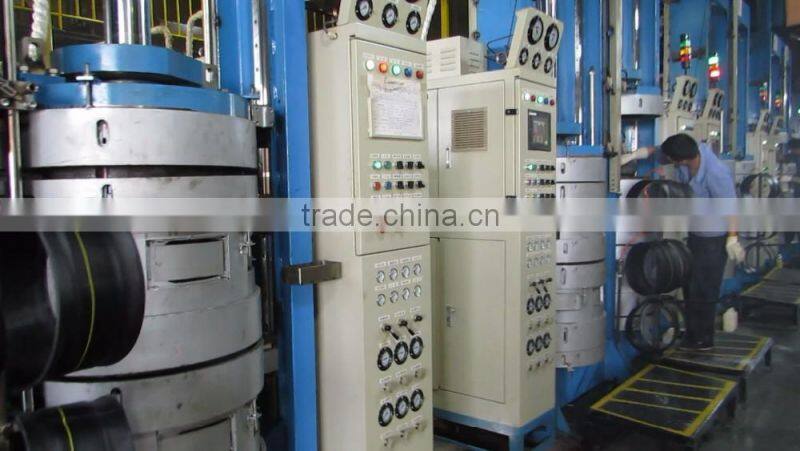

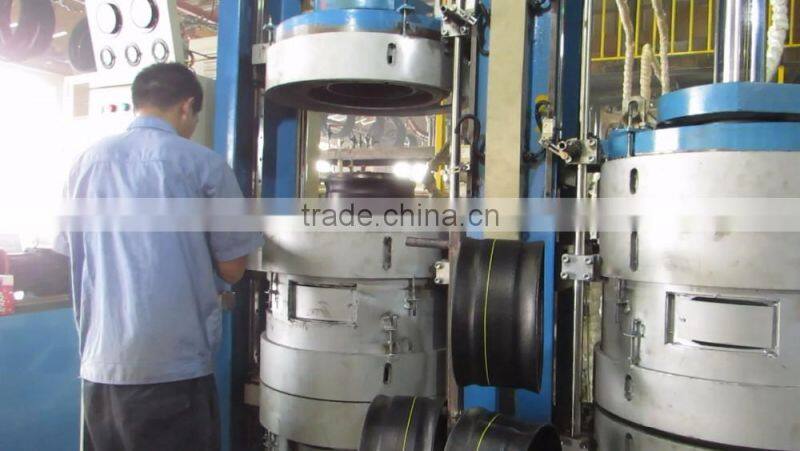

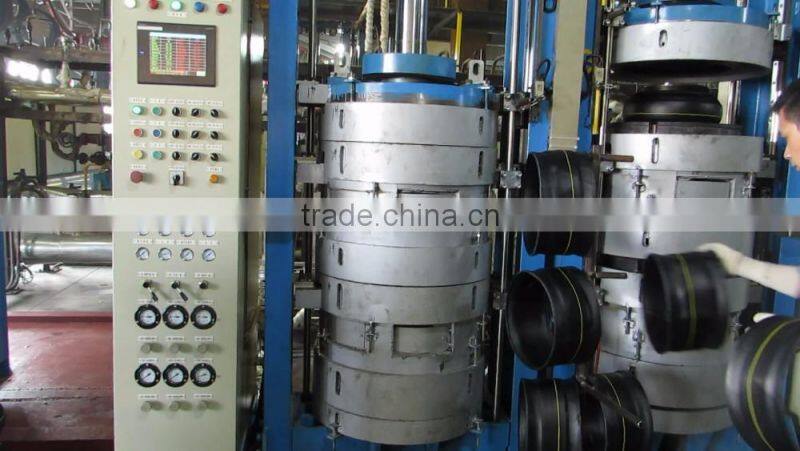

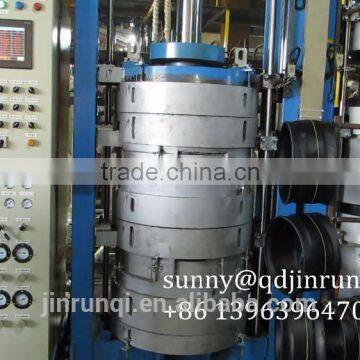

Tyre Making MachineTyre Making MachineTyre Making MachineTyre Making Machine

If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.
