Rubber Vulcanizing Press/Rubber Vulcanizing Press Machine/Rubber Vulcanizing Machine
- Qingdao port
- T/T
You May Like
-
Rubber Vulcanizing Machine/two Daylight Curing Press
-
Solid Tyre Tire Vulcanizer for Sale
-
XLB600X600X2 Rubber Sheet Curing/vulcanizing Press Machine
-
Plate Vulcanizing Press Machine / Rubber Vulcanizing Press Machine /vulcanizing Machine Xlb-d Series
-
Rubber Mat Manufacturing Machine/rubber Sheeting Machine/vulcanized Rubber Mold Machine
-
Golden Supplier Rubber Curing Press Hot Sales Car Floor Mat Making Machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | JINRUNQI | Model Number | 1200*1200 | |
| Voltage | as client's requirements | Power(W) | 8.0KW | |
| Dimension(L*W*H) | 1300*2100*4000mm | Weight | 6800kgs | |
| Certification | ISO/CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

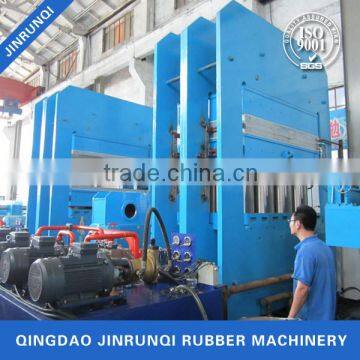

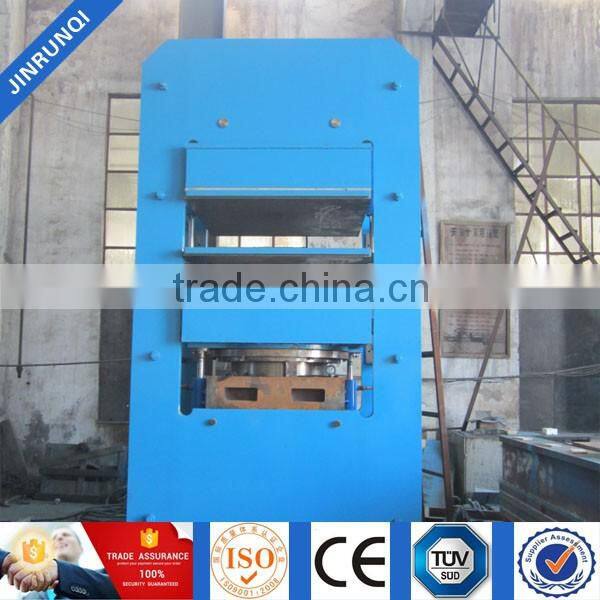

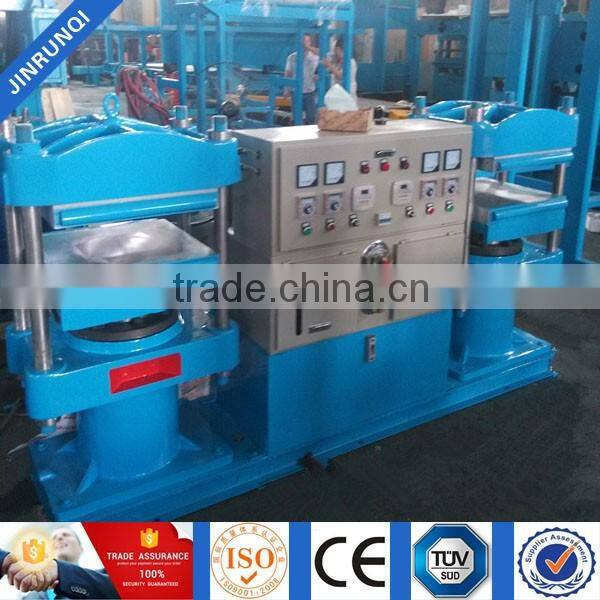

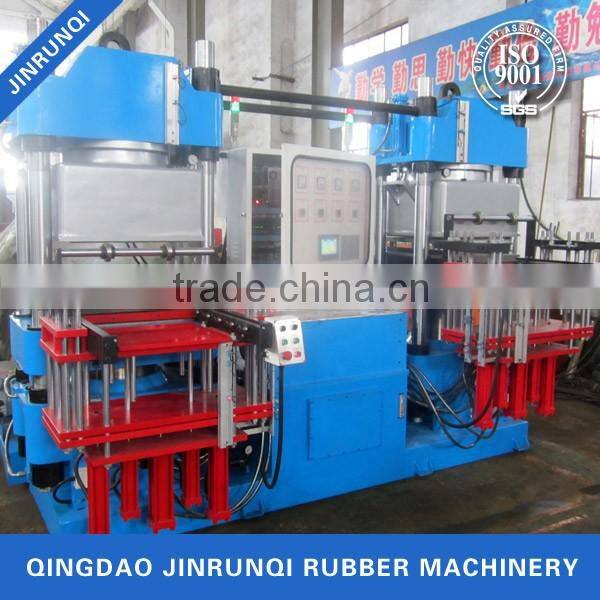

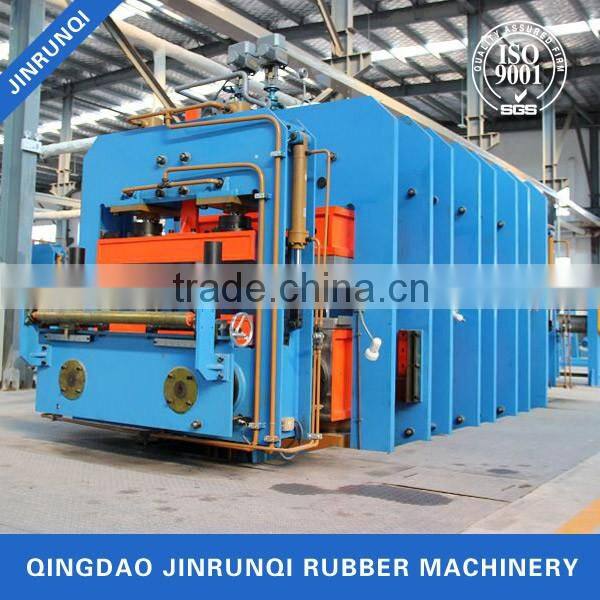

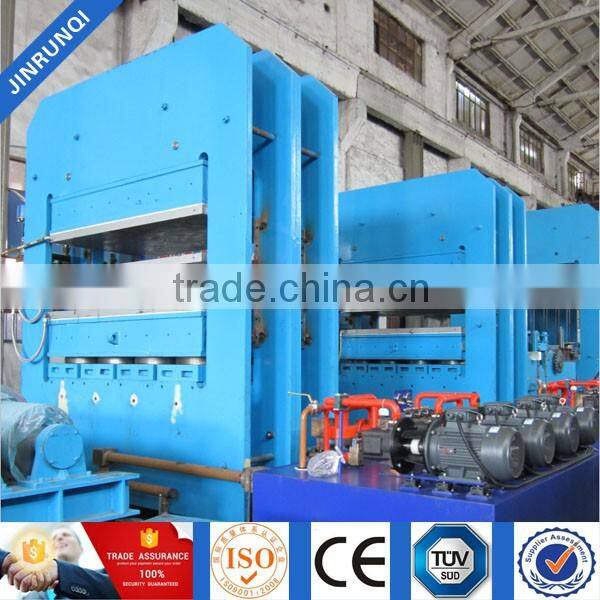

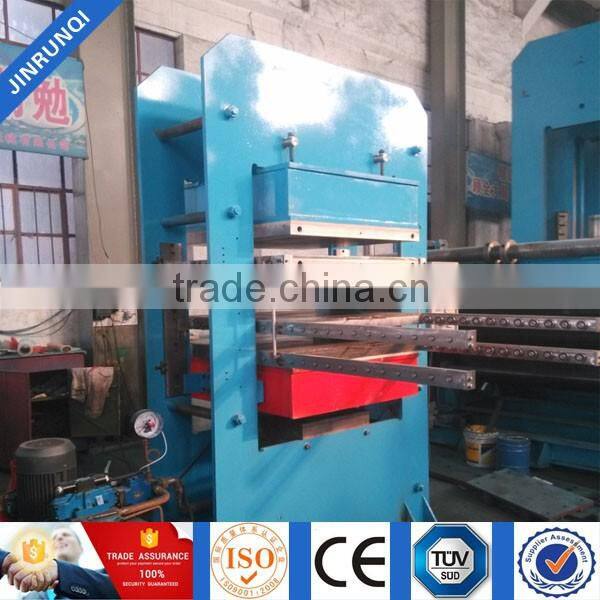

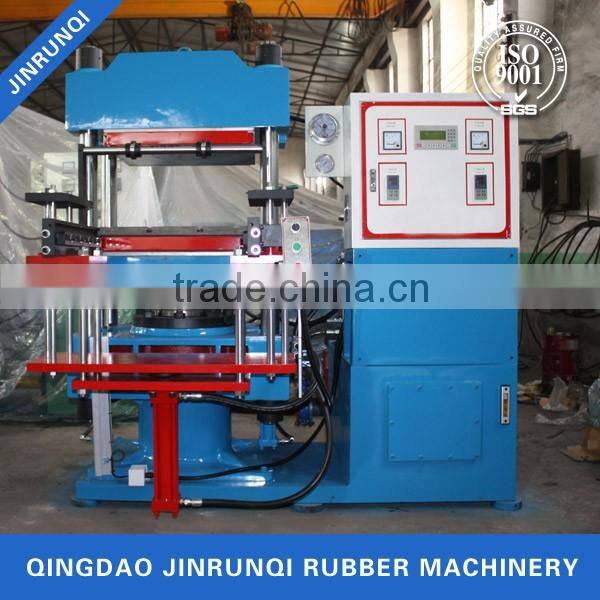

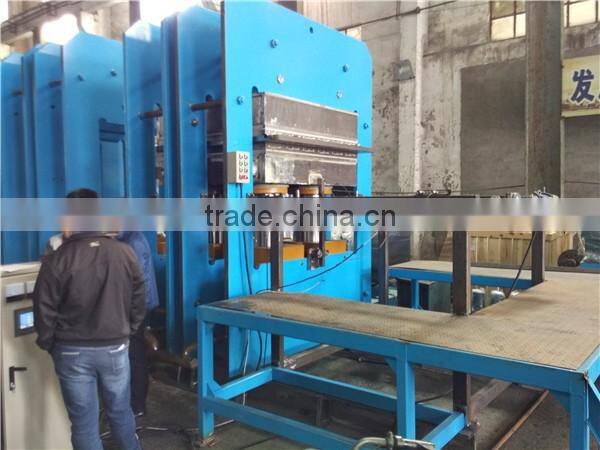

The following pictures are diferent sizes press amchines for your reference:
The following is some infomation of standard rubber hydraulic press amchine/rubber vulcanizing press amchine.
Technical data:
Type | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
Nominal clamp mould force | 1.6mn | 2.0mn | 2.5mn | 3.15mn |
Piston size | 800*800 | 1000*1000mm | 1200*1200mm | 1500*1500mm |
Number of cylinder | 1 | 1 or 2 or 3 pieces | 1 or 2 or 3 pieces | 1 or 2 or 3 pieces |
Piston diameter | ¢360mm | ¢400mm | ¢450mm | ¢500mm |
Stroke of piston | 300mm | 300mm | 300mm | 300mm |
Distance between hot plate | 300mm | 300mm | 300mm | 300mm |
Unit area pressure of hot plate | 2.5Mpa | 2.0Mpa | 1.8Mpa | 1.5Mpa |
Power | 3.0KW | 5.5KW | 8.0KW | 8.0KW |
Overall size(L*W*H)(mm) | 900*1600*2500mm | 1100*1900*3600mm | 1300*2100*4000mm | 1600*2450*4200mm |
Weight | 4000kgs | 5800kgs | 6800kgs | 8000kgs |
Close mould speed | ≥6 | ≥6mm/s | ≥6mm/s | ≥6mm/s |
Open mould speed | ≥4 | ≥4mm/s | ≥4mm/s | ≥4mm/s |
We can produce all kinds of rubber machines according to client's requirements!!!
After Sales Service:
1. We will offer you one year guarantee
2. We will give you reply and solution within 24 hours.
Packaging Details: wooden case
Delivery Detail: within 30 days
