Home > Products > Cable tray > Galvanized Steel Perforated Cable Tray
Galvanized Steel Perforated Cable Tray
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | OPTELEC | |
| Model Number | QJC | Type | Solid Through | |
| Material | Steel | Width | 200~800mm | |
| Length | 2.4M, 3.0M | Side Rail Height | 75mm, 100mm, 150mm. 200mm | |
| Max. Working Load | 74KG |
Product Description

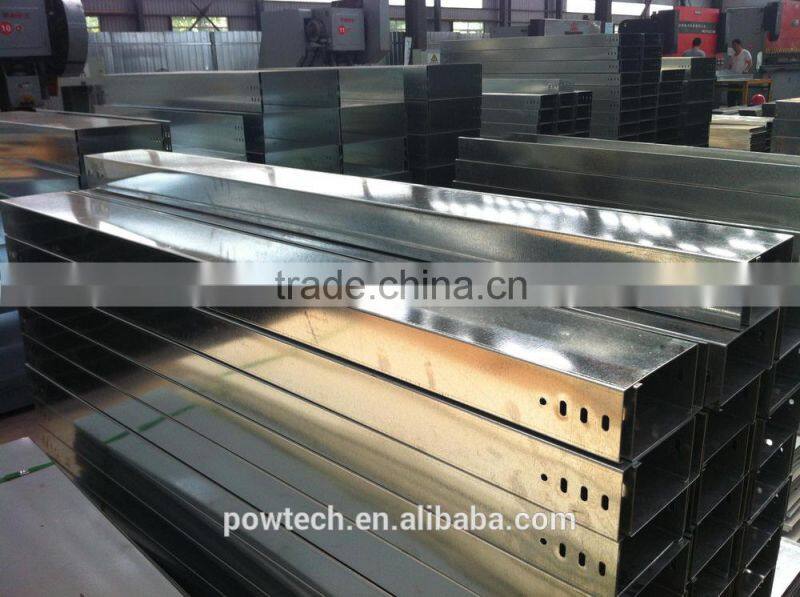

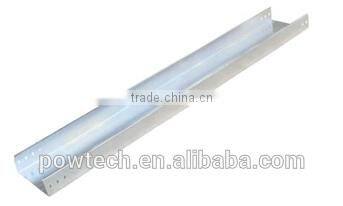

Hot dip galvanized steel perforated cable tray
The cable ladder tray system is designed for maximum flexibility,allowing for easy field cutting, bending, assembly and conveninent cable drop outs.

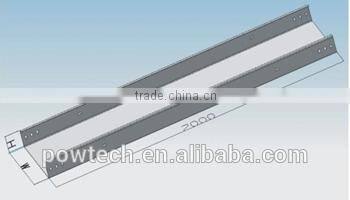

Dimensions: (Available for customized)
- Height: 75mm, 100mm, 150mm. 200mm
- Width: 200~800mm
- Length:2.4M, 3.0M
- Radius: 300, 450, 600 or 900mm
- Degree of arc for bend items: 30, 45, 60 or 90 degree
Cable trunking material
Hot rolled mild steel
Pregalvanized steel
Stainless steel SS304, SS316
Surface Finish:
Steel used for cable trays shall be protected against the corrosion by one of the following processes:
(1) Pre-galvanized
(2) Hot dip galvanized after fabrication, for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
(3) Electro galvanized, for indoor use to BS EN 12329-2000, 12microns thick.
(4) Electrolytic Polishing – for stainless steel use
(5) Powder coating-for indoor and outdoor use.
Applications:
Cable Trunkings are mainly used for low voltage, telecommunication, and fiber optic cables supported on short
1.Excellent quality
2.Favoured price
3.Professional after-sales service
4.Experienced workers team
5.ADSS/OPGW cable,hardware,cable accessories leading manufacturer from China
6.Customized
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.
Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.
Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.
Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.
Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
