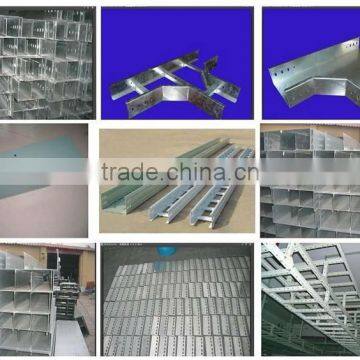

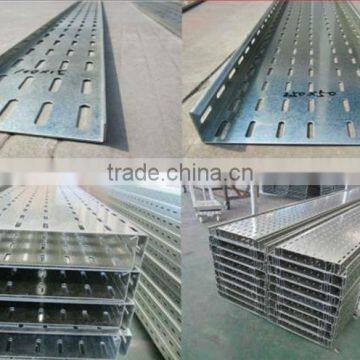

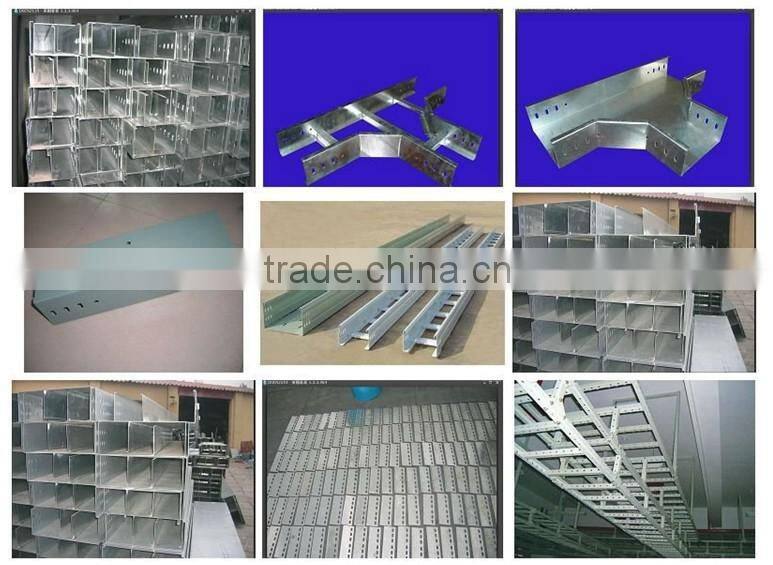

Aluminum Perforated Cable Tray / Aluminum Cable Tray Size

Aluminum  perforated cable tray / Aluminum cable tray size

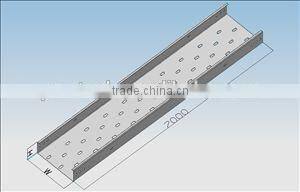

Sizes:

Widths: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mmm and 600mm
Height: 12~ 60mm
Thichness: 0.80mm, 1.0mm, 1.2mm, 1.5mm and 2.0mm

Besides, you can easily change the direction of the 2500mm and 3000mm lengthed trays with assitance of modular turn and bends.

l Perforated cable tray material

Aluminum

Hot rolled mild steel

Pregalvanized steel

Stainless steel SS304, SS316

l Surface Finish:

Steel used for cable trays shall be protected against the corrosion by one of the following processes:

(1) Pre-galvanized

(2) Hot Dipped Galvanized after fabrication, for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

(3) Electro Galvanized, for indoor use to BS EN 12329-2000, 12microns thick.

(4) Electrolytic Polishing – for stainless steel use

(5) Powder coating-for indoor and outdoor use.

l Applications:
Hot dipped galvanized cable tray is designed to protect rated cabling in applications that require frequent washdown. A variety of sloped-top fittings with front, inside or outside cover options allows for highly-customized runs using standard catalog product and supports directional control of washdown effluent.
